How to Choose the Galvanometer for Your Laser Marking Machine?

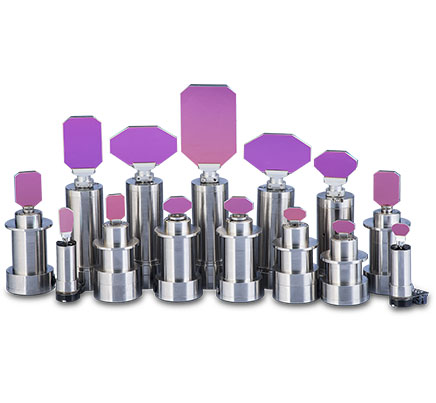

Choosing the right galvanometer for your laser marking machine is crucial for achieving optimal performance and precision. A galvanometer scanner is a key component in laser marking systems, responsible for directing the laser beam with high speed and accuracy. This article will guide you through the essential factors to consider when selecting a galvanometer for your laser marking machine.

Wavelength

The wavelength of the laser is a critical factor in determining the type of galvanometer you need. Different materials absorb laser light at different wavelengths, so it’s important to match the galvanometer to the laser generator’s wavelength.

For Non-Metallic Materials: Generally, a wavelength of 10.64 µm is used. This is typical for CO2 lasers, which are effective for marking organic materials like wood, leather, and certain plastics.

For Metal Materials: Semiconductor and fiber laser machines usually operate at a wavelength of 1064 nm. This wavelength is ideal for marking metals such as aluminum, steel, and stainless steel.

For Green and UV Lasers: Green lasers operate at 532 nm, and UV lasers at 355 nm. These wavelengths are suitable for marking sensitive materials like certain plastics and ceramics, where minimal heat generation is required.

Marking Field

The marking field is the area that the laser can cover during the marking process. It’s important to choose a galvanometer scanner that matches the actual marking area and shape of your application. Contrary to popular belief, a larger marking field is not always better. The marking field should be tailored to your specific needs to ensure optimal results.

Small Marking Fields: Ideal for applications requiring high precision and detail, such as engraving small components or intricate designs.

Large Marking Fields: Suitable for applications that involve marking larger surfaces or multiple items simultaneously. However, larger fields may compromise precision if not properly calibrated.

Aperture

The aperture size of the galvanometer scanner is another critical factor. The aperture determines the diameter of the laser beam that the scanner can handle. For fiber laser marking applications, an aperture size of 10 mm is generally adequate. The aperture size should align with the requirements of your marking process to achieve precision and operational efficiency.

Small Apertures: Provide higher precision and are suitable for detailed marking tasks.

Large Apertures: Allow for higher power lasers and larger beam diameters, which can be useful for marking larger areas or deeper engravings.

Additional Considerations

Speed and Precision

The speed and precision of the galvanometer scanner are crucial for efficient and accurate laser marking. High-speed scanners can significantly reduce marking time, while high-precision scanners ensure that the markings are accurate and consistent.

High-Speed Scanners: Ideal for high-volume production environments where speed is a priority.

High-Precision Scanners: Essential for applications requiring detailed and accurate markings, such as in the electronics or medical device industries.

Cooling System

Laser marking generates heat, and an effective cooling system is essential to maintain stable operation and prolong the lifespan of the galvanometer scanner. Options include air-cooled and water-cooled systems.

Air-Cooled Systems: Simpler and more cost-effective, suitable for low to moderate power applications.

Water-Cooled Systems: More efficient at dissipating heat, ideal for high-power applications and continuous operation.

Software and Control System

The software and control system that accompany the galvanometer scanner should be user-friendly and provide the necessary functionalities for your tasks. Look for systems that support both vector and raster marking and offer real-time feedback for dynamic adjustments.

Budget

Consider your budget constraints when selecting a galvanometer scanner. While high-quality scanners may have a higher upfront cost, they can lead to cost savings over time by reducing maintenance and increasing efficiency.

Customer Support and Training

Choose a manufacturer that offers robust customer support, comprehensive training, and detailed documentation. This support is essential for troubleshooting and maximizing the efficacy of your laser marking system.

Reviews and References

Consult reviews from other users and request references from the manufacturer. This information can provide valuable insight into the practical performance and reliability of the galvanometer scanner.

Selecting the right laser scanner galvanometer marking machine involves considering several factors, including wavelength, marking field, aperture size, speed, precision, cooling system, software, budget, and customer support. By carefully evaluating these factors, you can choose a galvanometer scanner that aligns with your specific needs and ensures successful and efficient laser marking for your applications. If you need further assistance, feel free to contact us. Our experts at Scanner Optics are always ready to help you find the perfect solution for your laser marking needs.
