Smart Incremental

The Smart Incremental series from Han's Scanner is an open, non-contact universal grating ruler system. The reading head is compact and small, with built-in LED indicators for installation, outputs digital signals with resolutions as low as 32nm, and incorporates an integrated optical Index mark sensor probe.

GET A QUOTE
smart incremental 001
smart incremental 001

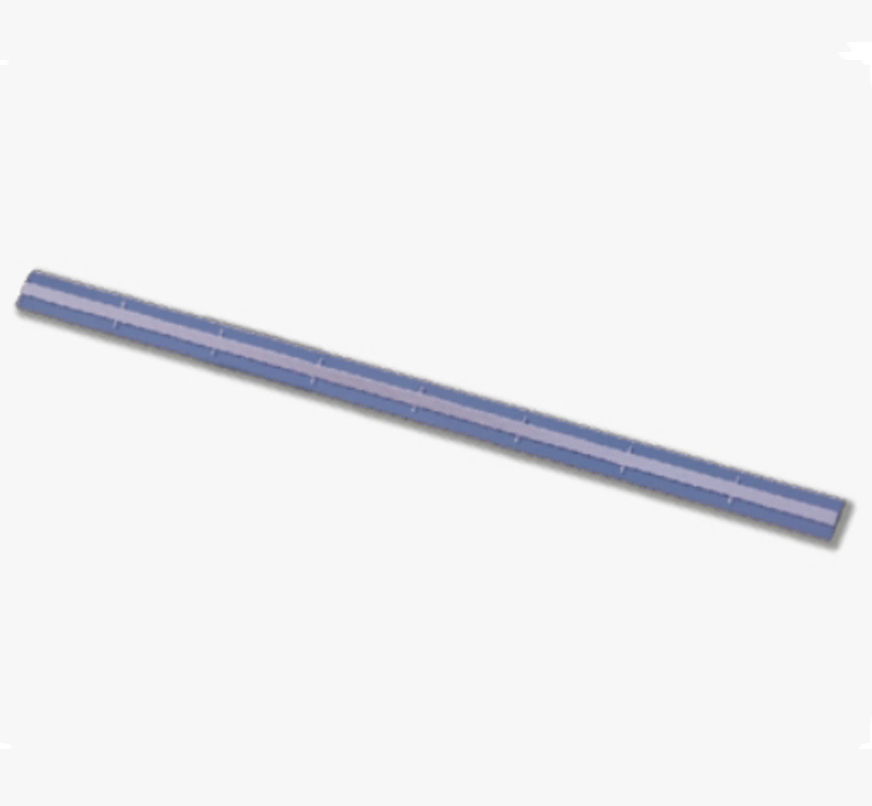

smart incremental 008

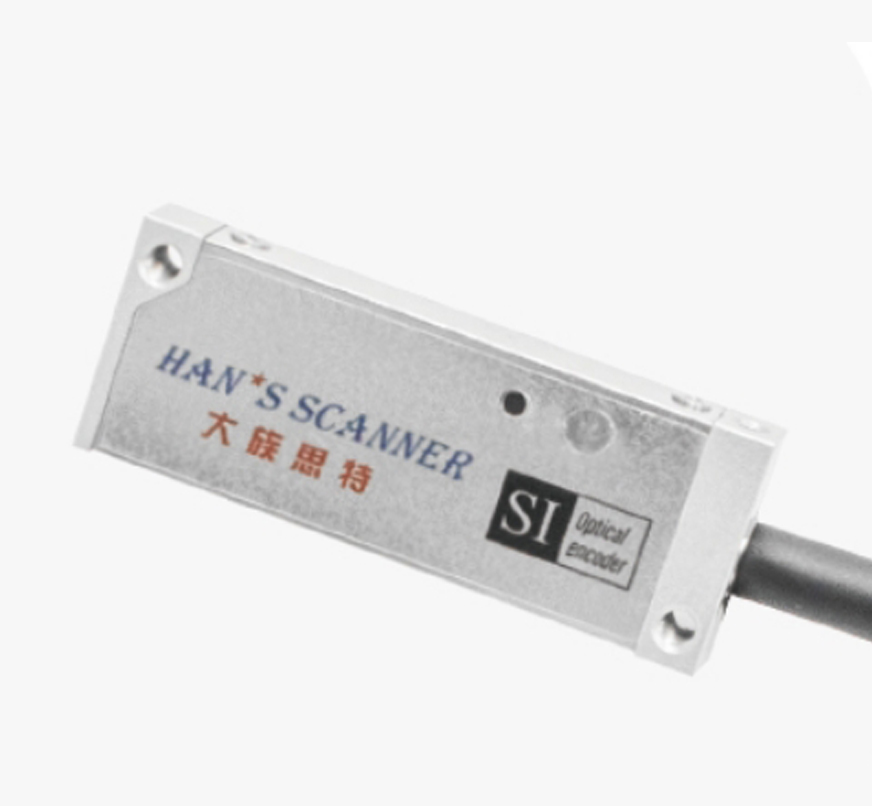

smart incremental 003

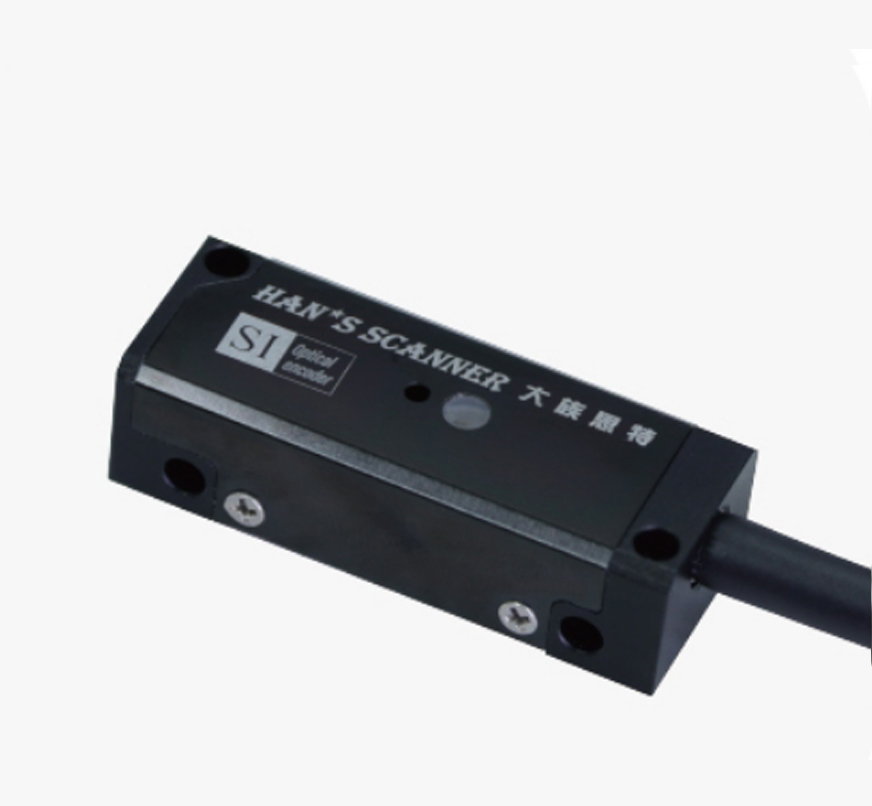

smart incremental 002

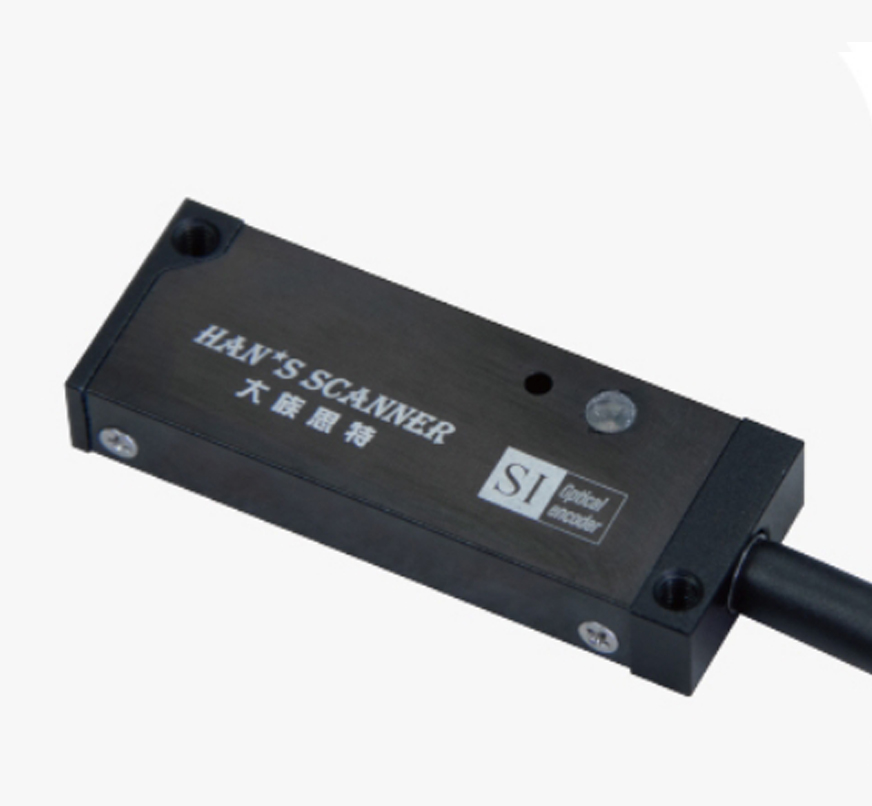

smart incremental 004

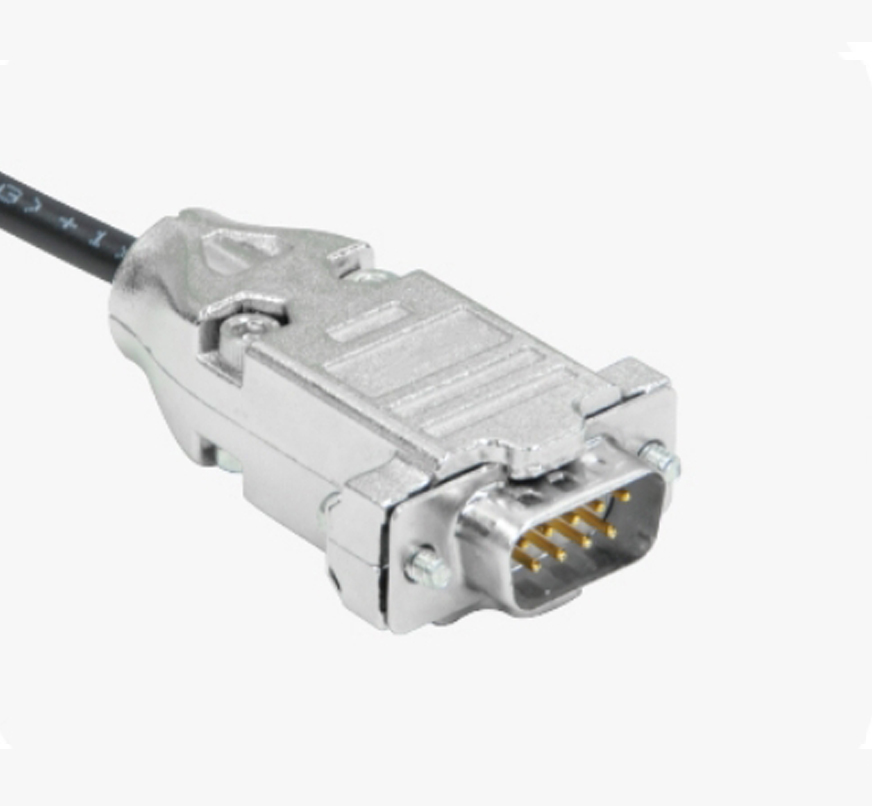

smart incremental 006

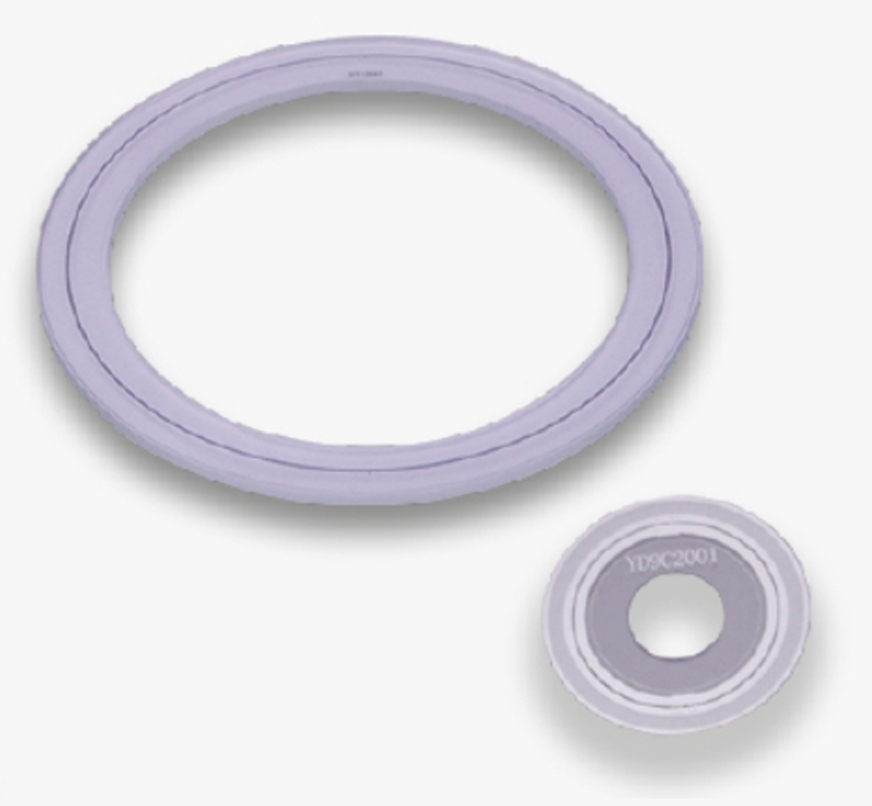

smart incremental 007

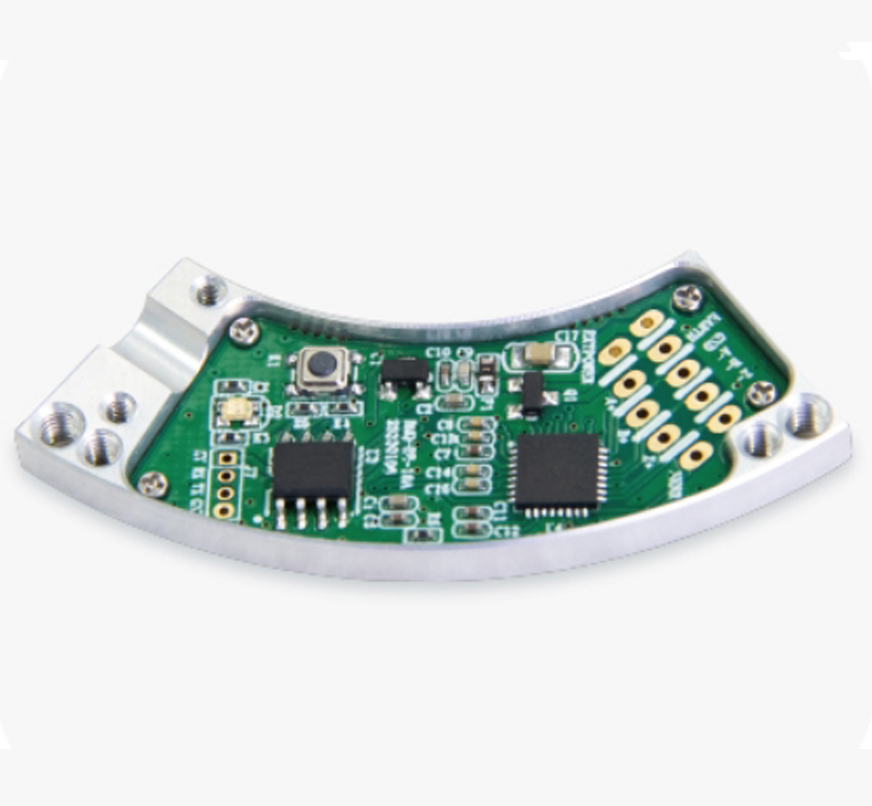

smart incremental 005

Specifications Of Smart Incremental



Temperature

Operate-20°C-70°C
Reserve-20°C-85°C



Humidity

Operation

10% to 90% RH, non-condensing
Operation10% to 90% RH, non-condensing

Hasten

50g: EN60068-2-7

Vibration

10g: 55 Hz-2 KHz; EN60068-2-6


Signal level

A/B/I (DIFFERENTIAL)RS-422
A/B/I (single-ended, no load)high>3VDC, low<0.2VDC
Sin/Cos1Vpp across 120Ω load


Category

Readhead size (mm)

Standard: 36x13.5x10.2; Ultra-thin: 40x15x6.4

Resolution (Digital)

Straight line: 4um-32nm

round: up to 8 million/circle

Straight-line accuracy class

+/-3μm (short glass grating)

+/-5μm (long glass grating)

< +/-3μm/meter (two-point linearization)

< +/-50μm/m (slope)

Circular accuracy grade

≤ 2.1ARC-sec

power supply

5VDC ± 5% @165mA (Jumper 120Ω resistor to A, B, I)

5VDC ± 5% @105mA (Jumper 120Ω resistor to sin, cos, l)

Maximum speed10 m/s
Index signal

1/4 pitch cycle (differential 1Vpp sin/cos output)

1LSB (Differential A-quad-B Output)

Status indicator

Yes
Operating environmentair
Grid pitchMultiple options 256 μm

Repeatability

1 LSB (>50nm resolution); 72nm (<50nm resolution)
Typical Subdivision Accuracy Error (SDE)72 nm
weight<18g (readhead), <100 g/m (cable)
