4-axis Large Field Processing System

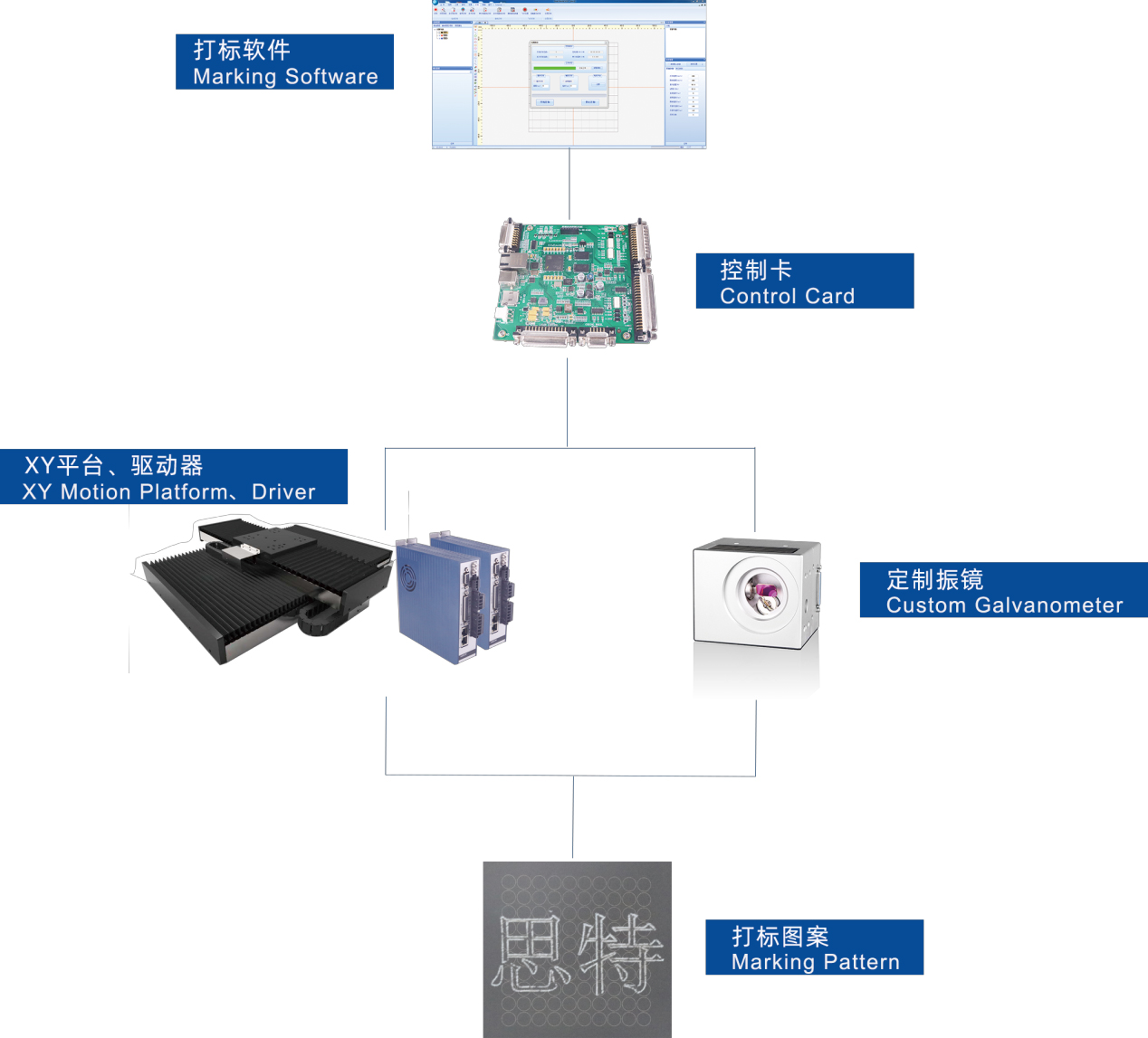

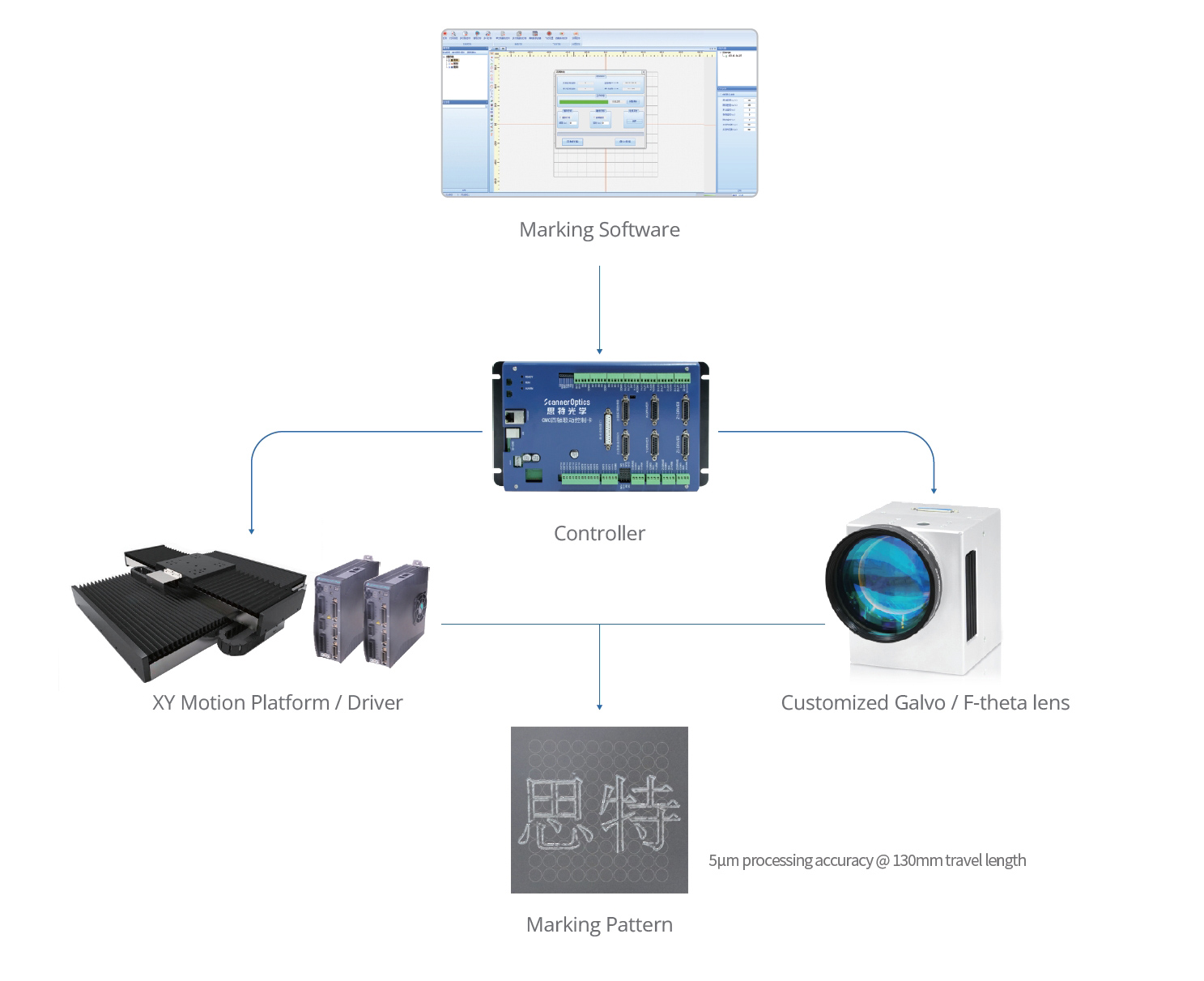

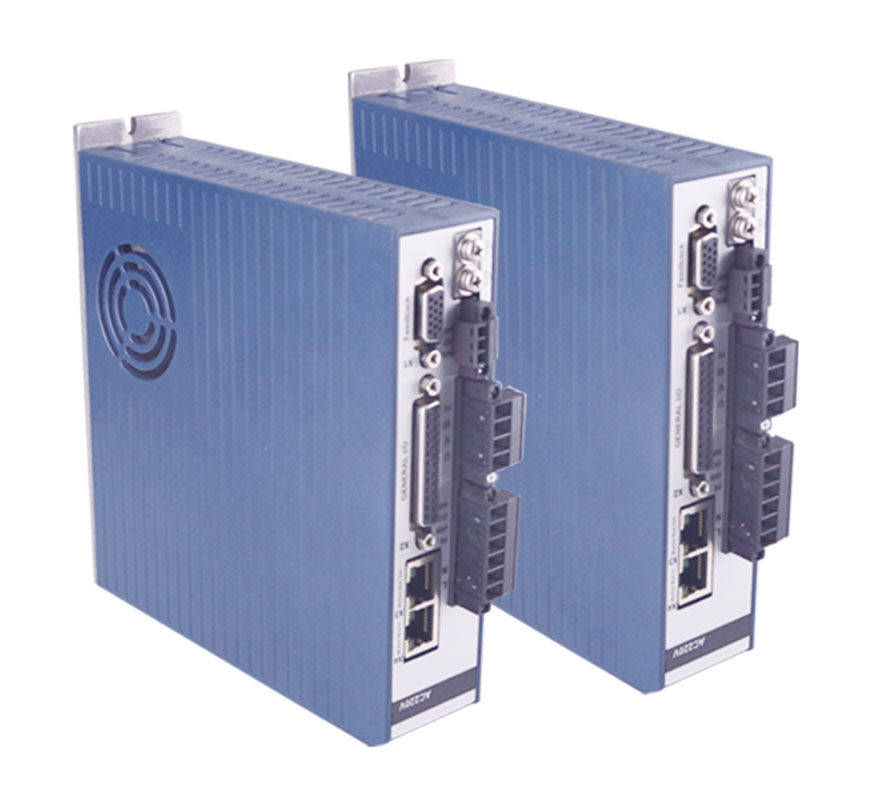

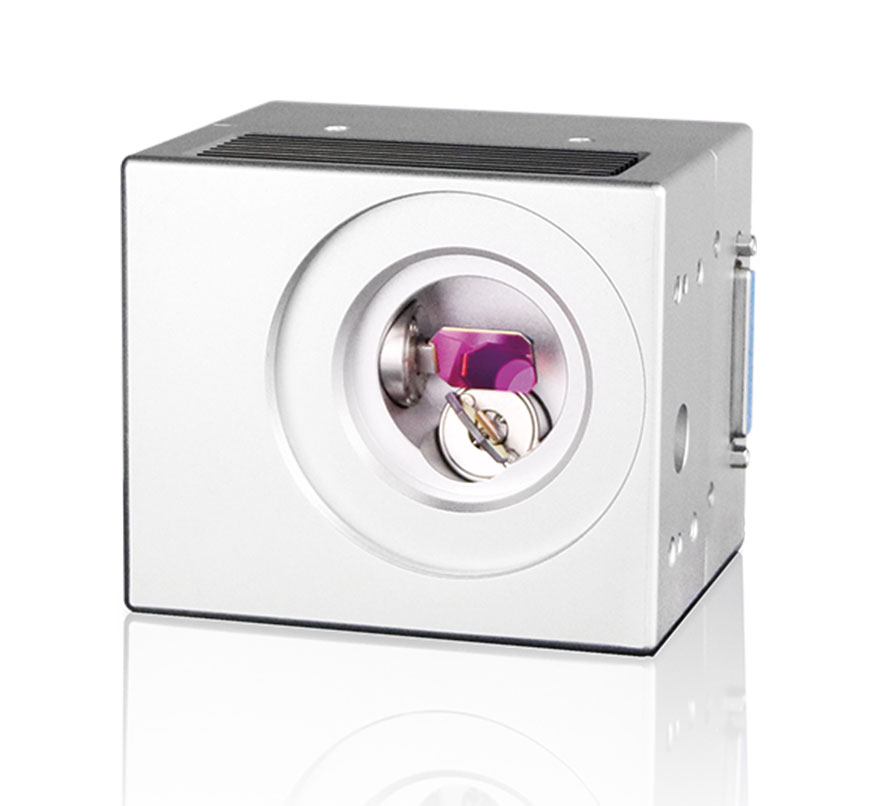

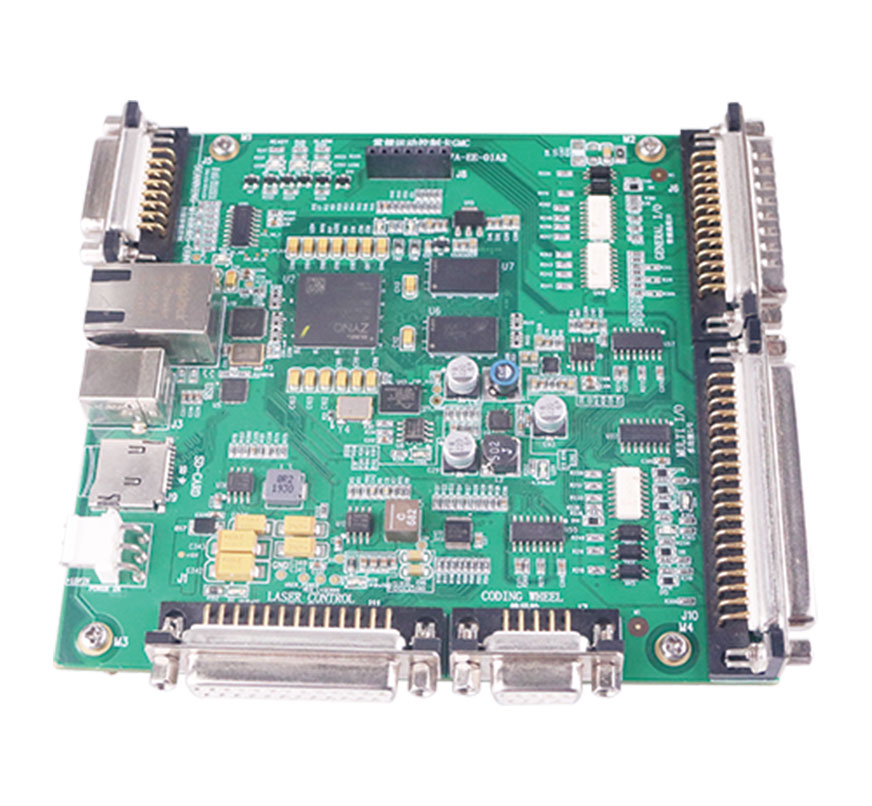

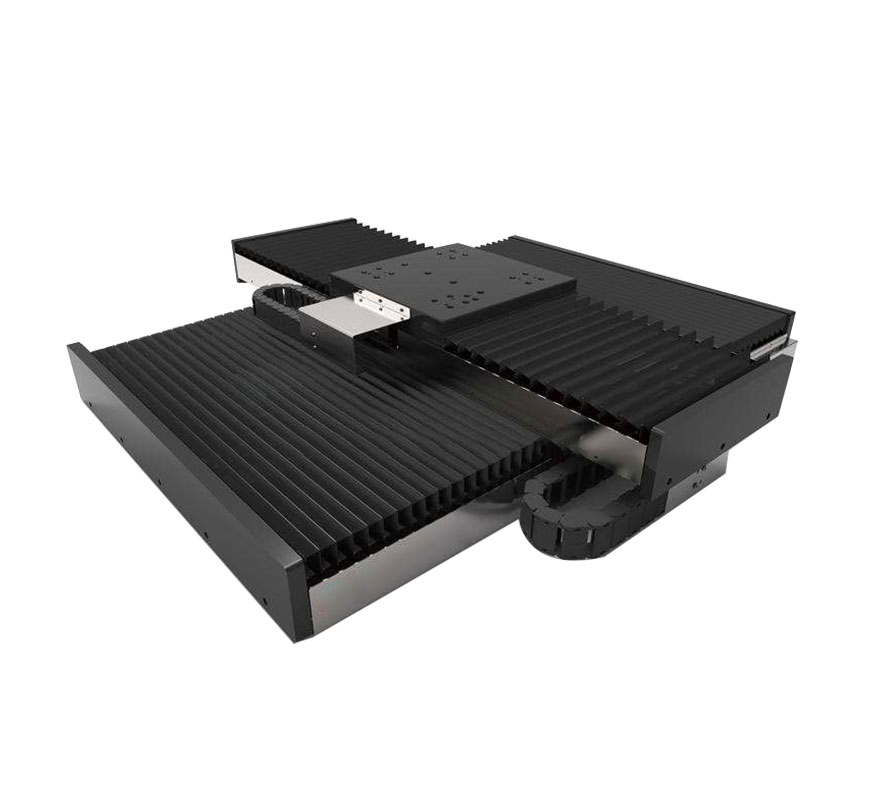

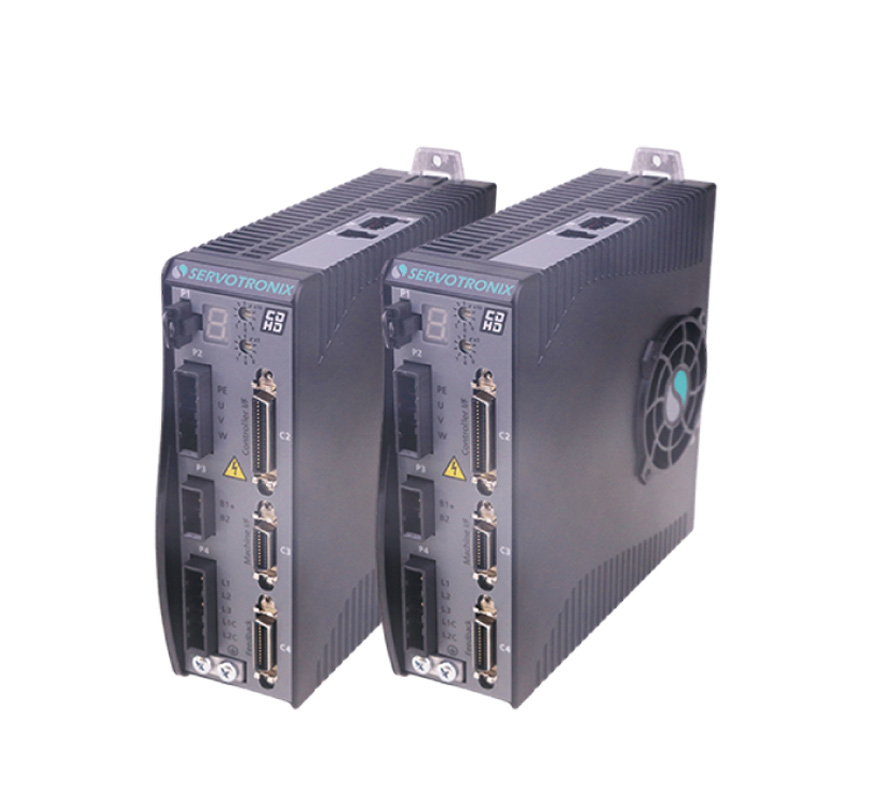

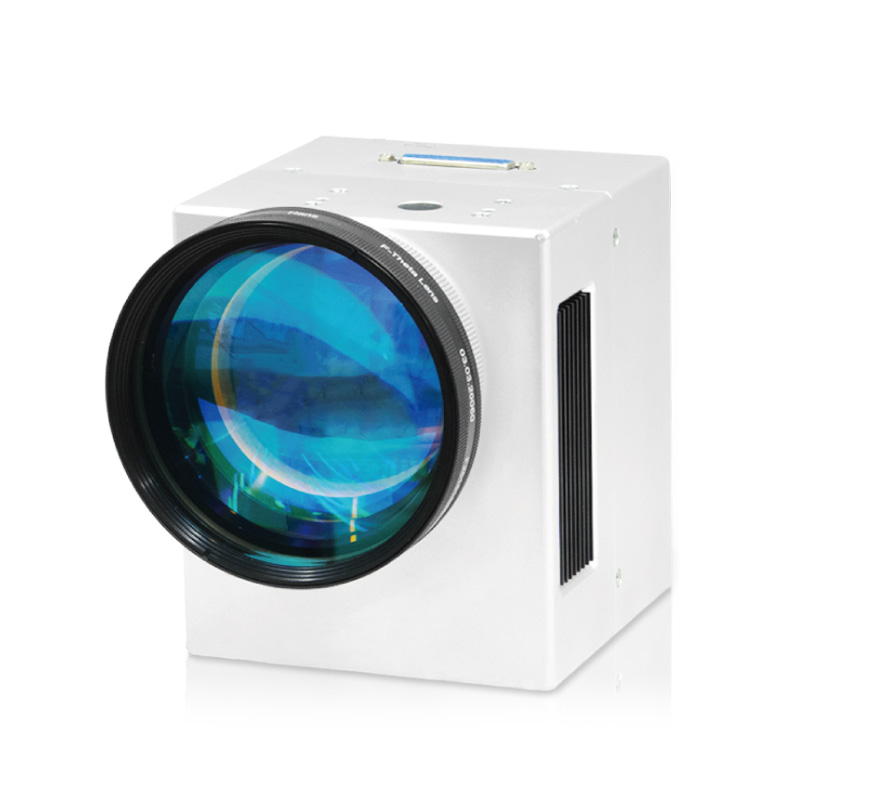

The four-axis linkage system is mainly composed of XY galvanometers, XY motion platform, platform driver, GMC control card and general marking software. It has the function of unlimited field of vision, synchronize the linear servo shaft and laser scanning galvanometer. When the high dynamic performance of the scanning galvanometer is combined with the large stroke range of the servo platform, a larger working range can be continuously processed than that of the traditional galvanometer, without the need for stitching the working area. The four-axis linkage system not only expands the working range of the laser processing system and the application range of a single optical device, but also avoids the interaction between the laser beam range and the available working range, and improves the processing quality and the production of large parts.

GET A QUOTE
Laser Scanning Solutions
Laser Scanning Solutions
Laser Processing System
3d Scanning Solutions
3d Laser Scanning Technology

Key Features Of 4-axis Large Field Processing System


  • Main features


    Easy-to-use parameter settings, easy to use for various parts

    Suitable for Han's Scanner series scanning galvanometers, compatible with the other galvanometers driven by XY2-100

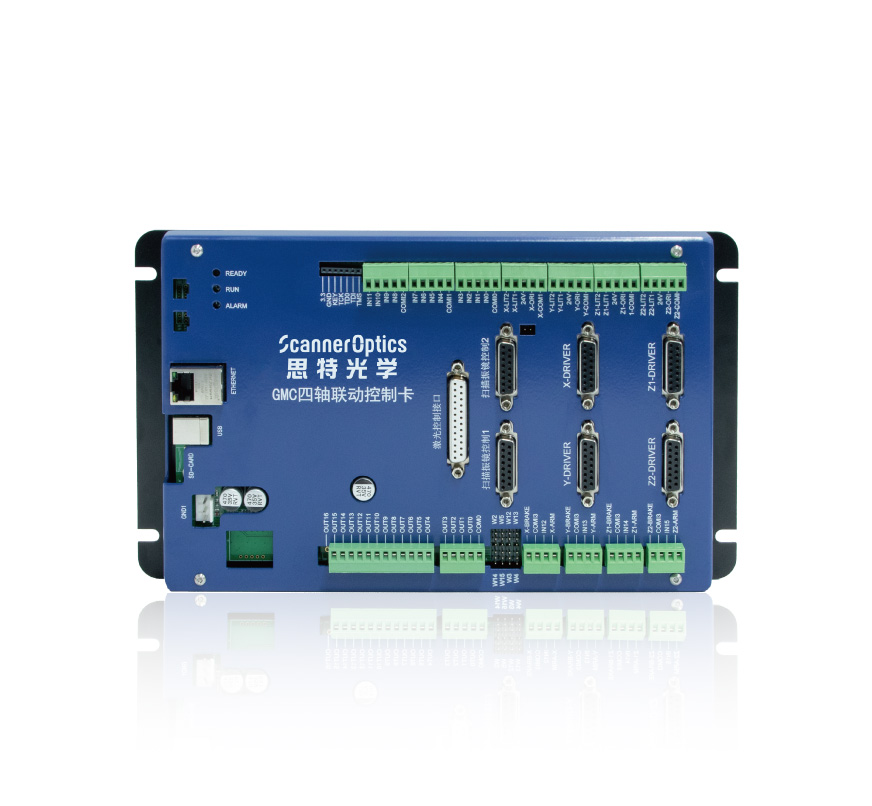

    Only one laser control card is needed to realize real-time synchronous linkage control between the galvanometer and the platform

    Can import standard format vector graph, can also be secondary development, development

    language support C++, C#.


  • Application scenarios


    Marking, cutting and engraving on a large scale

    Micromachining

    OLED processing

    Glass and foil processing

    PCB large area drilling

Specifications Of 4-axis Large Field Processing System


4-axis Large Field Size Processing System


The Machining Accuracy Is 5um@130mm Stroke
