Galvanometer Scanner Working Principle and Applications

Introduction to Galvanometer Scanners

A galvanometer scanner is a highly dynamic electro-optical component that uses a rotatable low-inertia mirror to position a laser beam with high precision and repeatability. This technology is integral to galvanometer scanner laser systems, which are versatile, accurate, and easy to use, making them ideal for a wide range of applications across various industries.

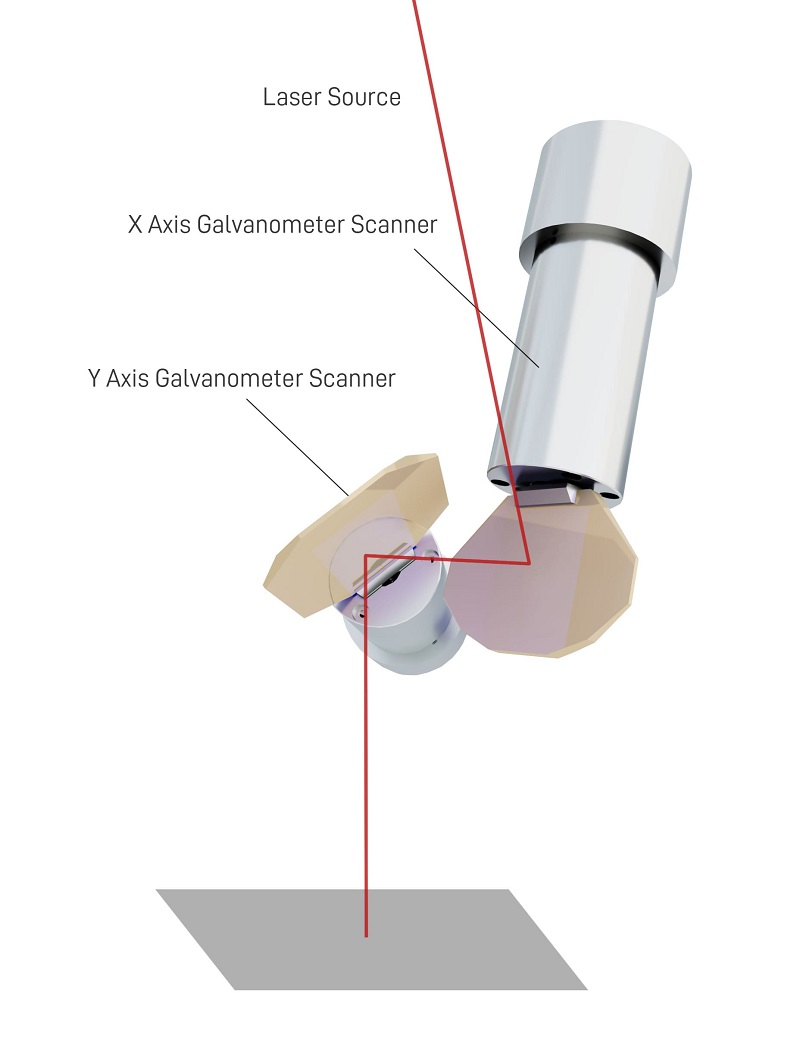

Galvanometer Scanner Working Principle

A galvanometer scanner is composed of a mirror that is fixed on a rotating shaft which is propelled by electromagnetic coils. The mirror moves in a controlled manner when an electric current flows through the coils. The galvanometer working principle involves using a galvanometer motor to manage the laser beam’s motion. The galvanometer scanner leverages the precise and swift motion of the galvanometer to direct the laser beam in different directions, enabling accurate scanning and positioning. This process relies on transforming electrical signals into mechanical motion, crucial for precise laser scanning tasks. The galvanometer motor is crucial for ensuring the effective performance of the galvanometer scanner laser system.

Galvanometer Scanner Applications and Industries

In law enforcement and fire safety, galvanometer scanner laser systems are indispensable tools for documenting crime scenes, reconstructing crash and accident sites, analyzing fire scenes, and conducting forensic investigations. They significantly reduce documentation time and create digital replicas of scenes that might be environmentally sensitive. In the field of safety and security, galvanometer scanner laser systems capture highly detailed data that is crucial for security personnel when responding to potential threats.

The insurance industry also reaps benefits from galvanometer scanner laser systems, using them to document the current state of properties. This helps establish baselines for value and obligation and accurately document losses in vehicles, damaged properties, or products. In the oil and gas sector, galvanometer scanner laser systems aid in engineering, maintenance, and planning on oil platforms and refineries. They are particularly useful for documenting complex piping structures to prevent installation errors.

Heritage and historical preservation efforts employ galvanometer scanner laser systems to capture the intricate geometries of existing buildings for study, preservation, or restoration. In site surveying, galvanometer scanner laser systems are utilized for volume calculations and topographic and as-built surveys. The construction industry leverages galvanometer scanner laser systems for continuous in-field verification at every stage of a project lifecycle, helping to predict and prevent errors, thereby saving costs, materials, and time.

Architectural and civil engineering projects benefit from galvanometer scanner laser systems by capturing as-built documentation of existing buildings and developing 3D models for project planning. Facilities management and asset documentation also gain from the precise data provided by galvanometer scanner laser systems, which are invaluable for maintaining and documenting complex factory and plant installations.
