Enough Head

Enough is a 10mm galvanometer, with various coating options, including UV, green, optical fiber, CO2 and other coating options. Strict mirror quality ensures the requirements of mirror flatness and damage threshold. The driving board adopts class A power amplifier, with low heat. The DA board and the driving board are integrated together. The size of this galvo scanner head is compact, and the single driver board drives two galvanometers at the same time, which is cost-effective.


GET A QUOTE

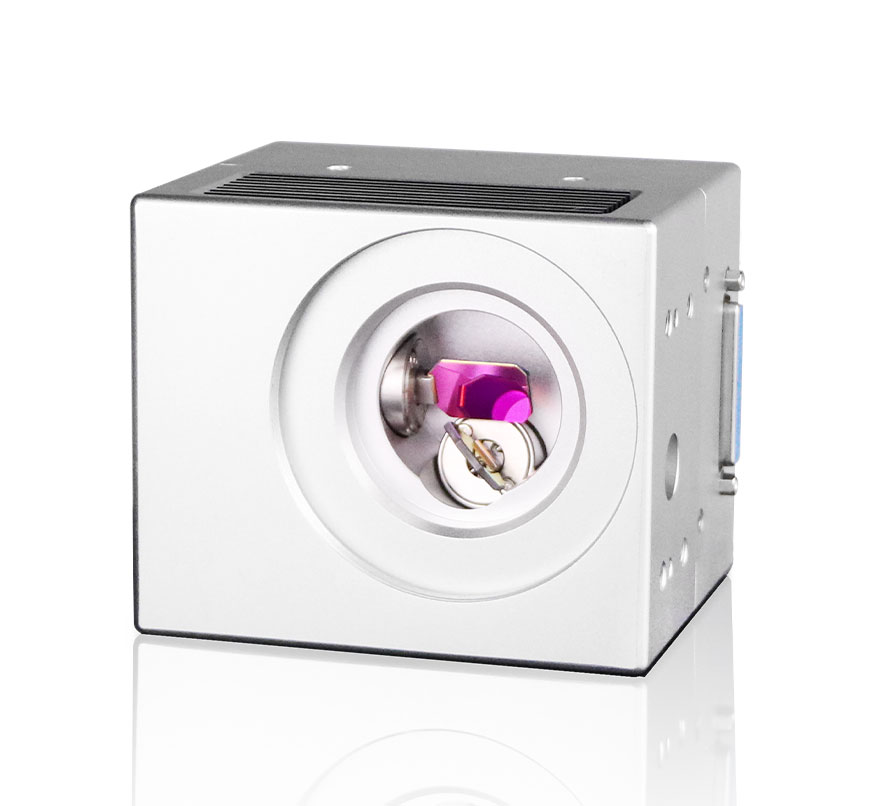

galvo scanner head
galvo scanner head

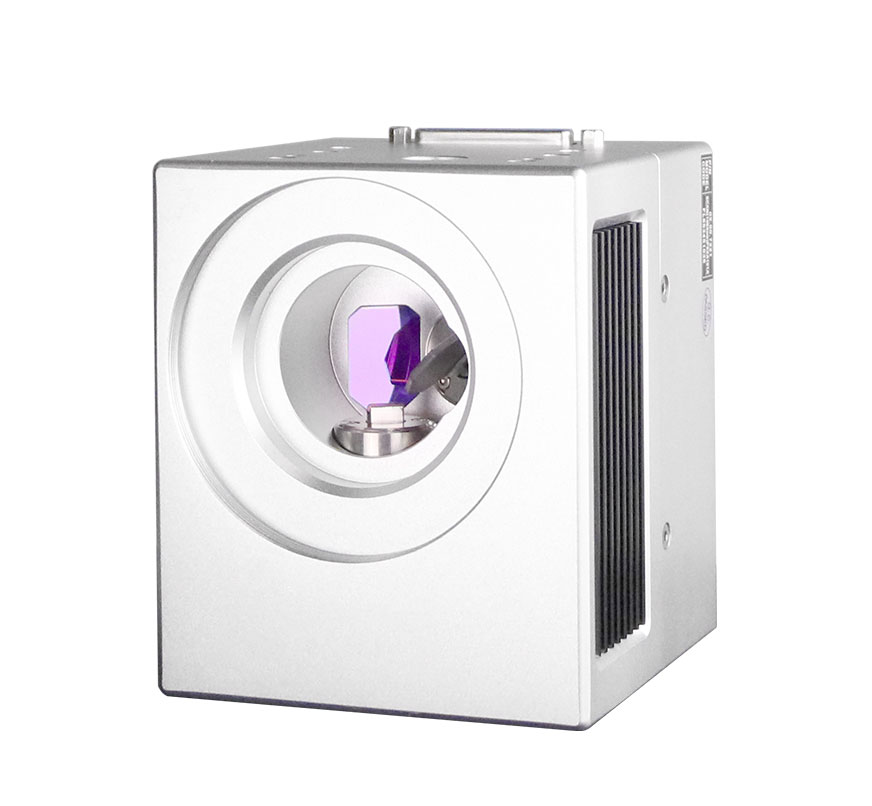

galvo head co2 laser

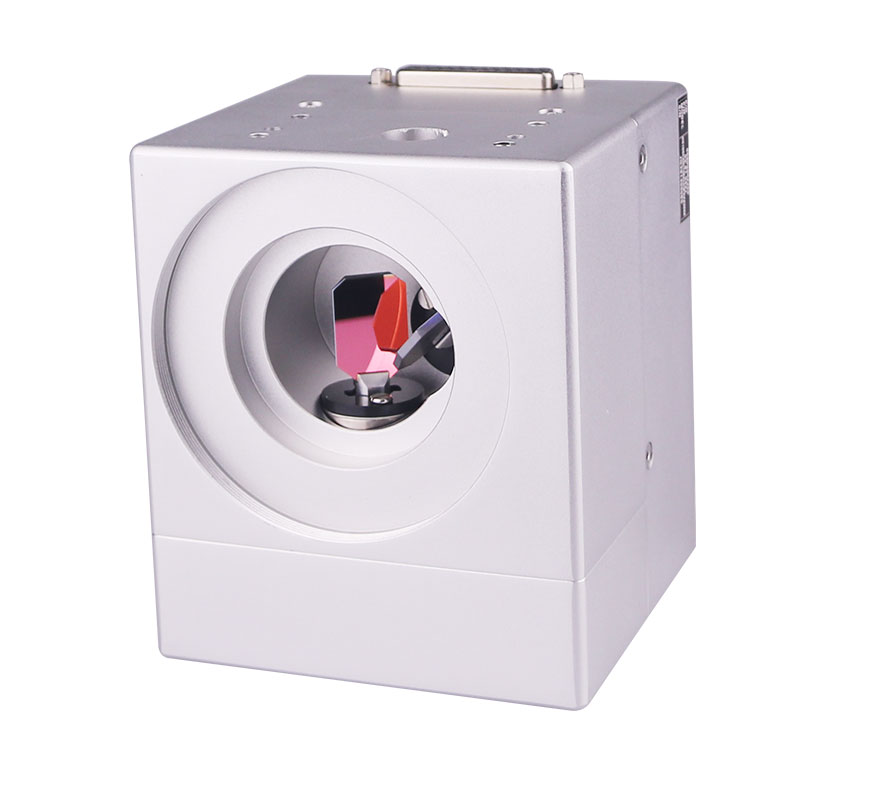

galvo head

Key Features Of Uniscan Head


  • UniScan:Based on analog driver technology


  • High accuracy photo-sensor as feedback


  • Well waterproof and dustproof performance


  • Fit a variety kinds of F-theta lenses


  • Successfully used in general laser marking, flight marking, semiconductor and electronic industry marking, ect

Download
  • Uniscan 10mm Dimensions
Leave a Message
*
*
*
*
*

Specifications Of Uniscan Head


Enough 10

Parameter

Input Beam Aperture (mm)

10

Beam Displacement (mm)

12.54

Tracking Error (ms)

0.20

Repeatability (µrad)

<30

Offset Drift (µrad/K)

<30

Gain Drift (ppm/K)

<110

Long-term drift over 8 hours (mrad)

<0.50

1% Of Full Scale (ms)

0.50

10% Of Full Scale (ms)

1.30

Positioning Speed (m/s)

9

Typical Scan Angle (°)

±12.5

Gain Error (mrad)

<10

Zero Offset (mrad)

<10

Nonlinearity (%)

<1

Power Requirements

±15VDC, ≥3A

Digital Interface

XY2-100

Operation Temperature (℃)

25±10

Weight (kg)

1.9


Galvanometer Application
