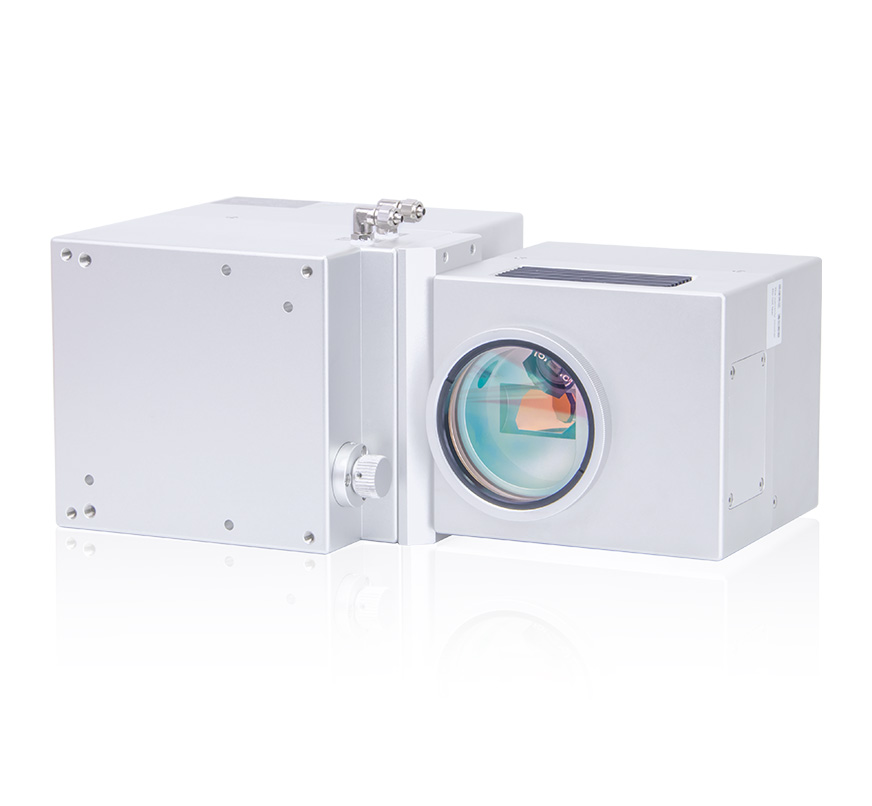

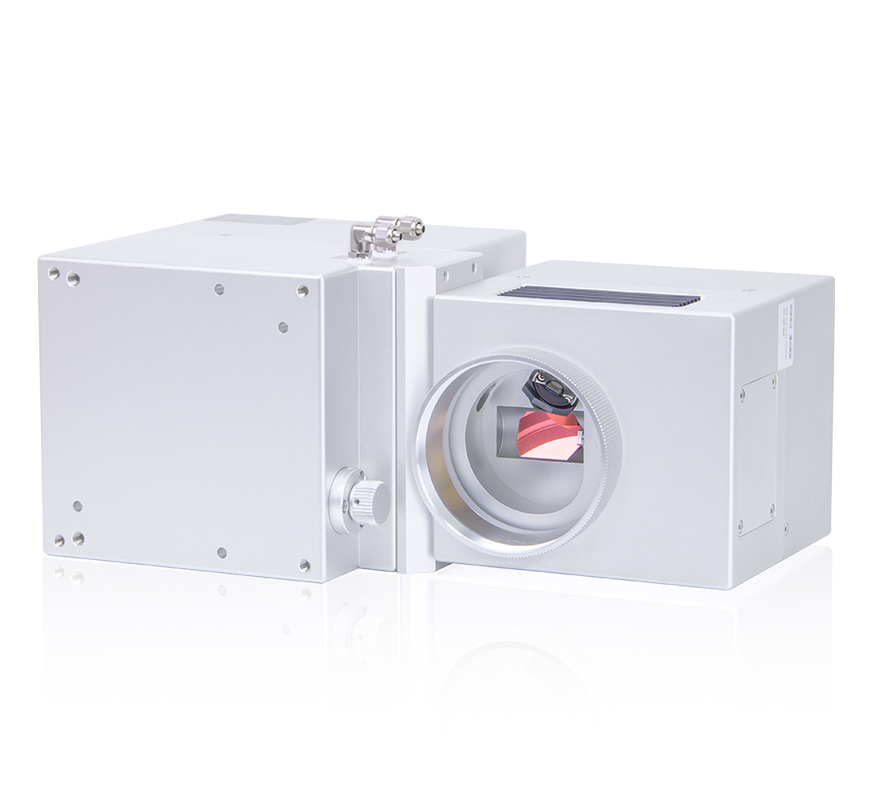

High Speed 3d & 2.5d Scanning System 14mm

The 2.5D&3D system has the function of conventional 2D galvanometer, and a zoom module is added on the basis of the conventional galvanometer, which solves the problem that the traditional laser scanning galvanometer can only realize plane scanning and small range scanning, and can complete laser processing system applications requiring dynamic zoom. Mainly used in glass drilling, 3D curved marking, welding, laser digging groove, step surface marking and so on. At the same time, this kind of galvo scan head has the characteristics of high precision, high stability and support for function customization.

GET A QUOTE

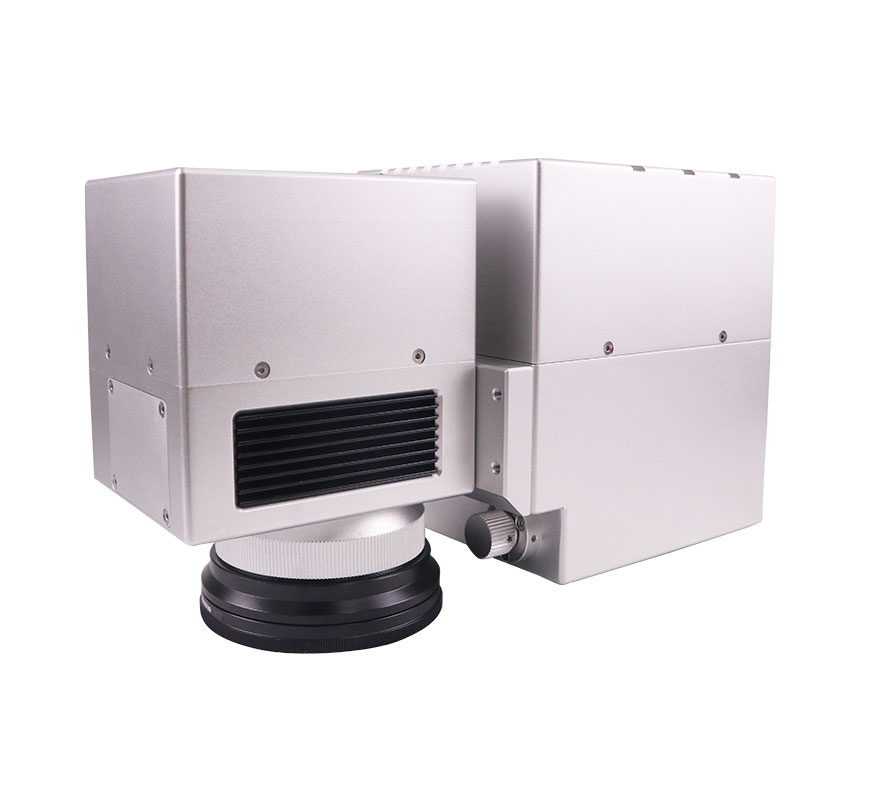

fiber laser galvo head
fiber laser galvo head

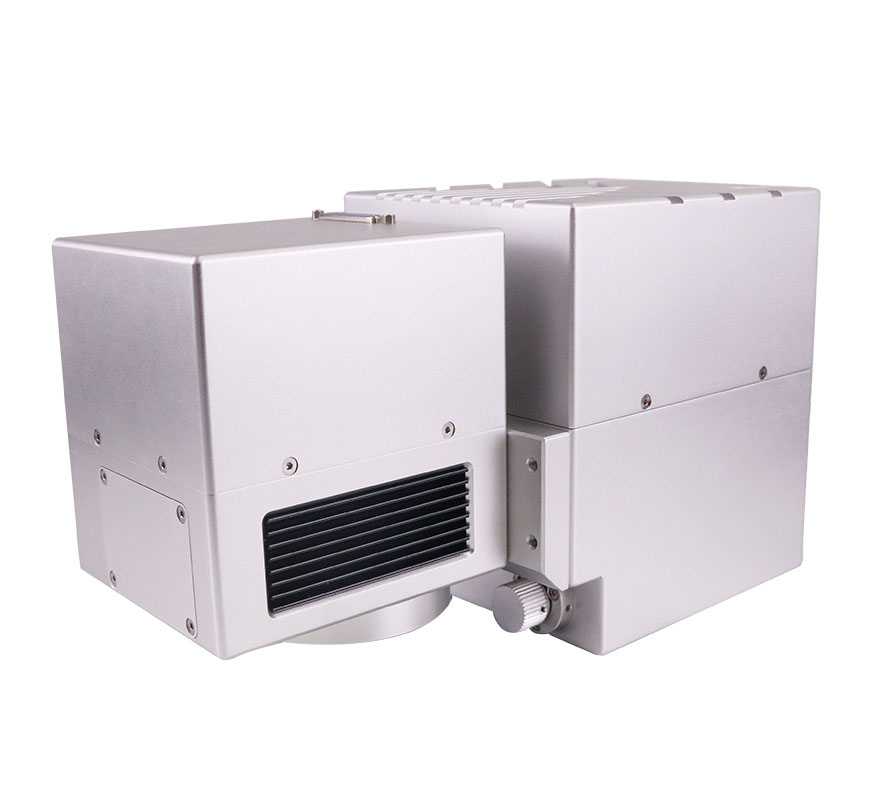

galvo head

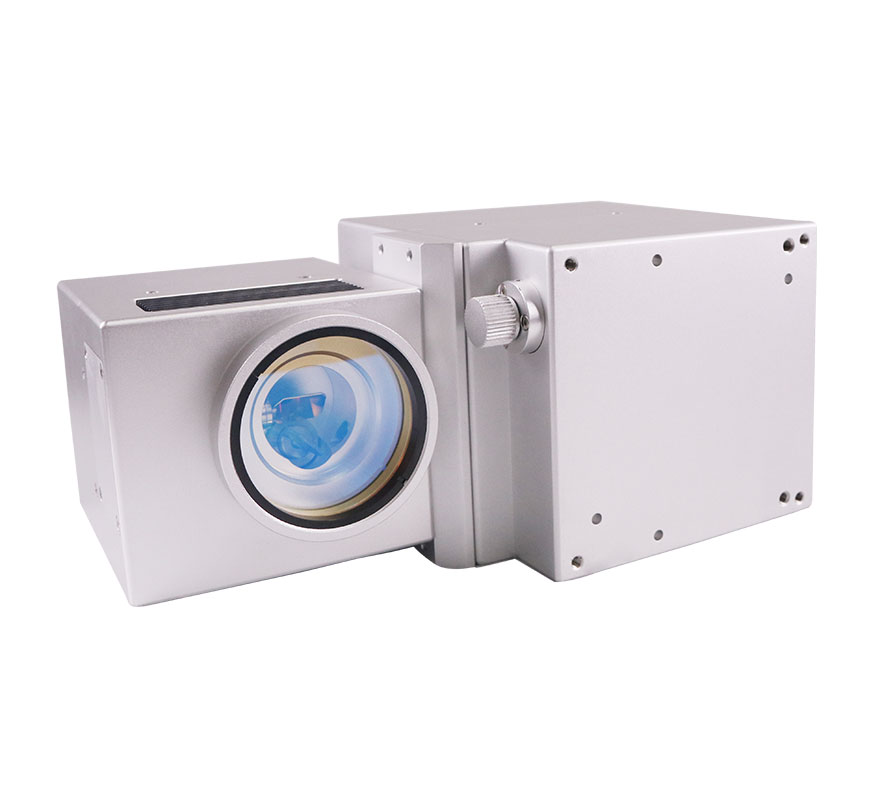

galvo head co2 laser

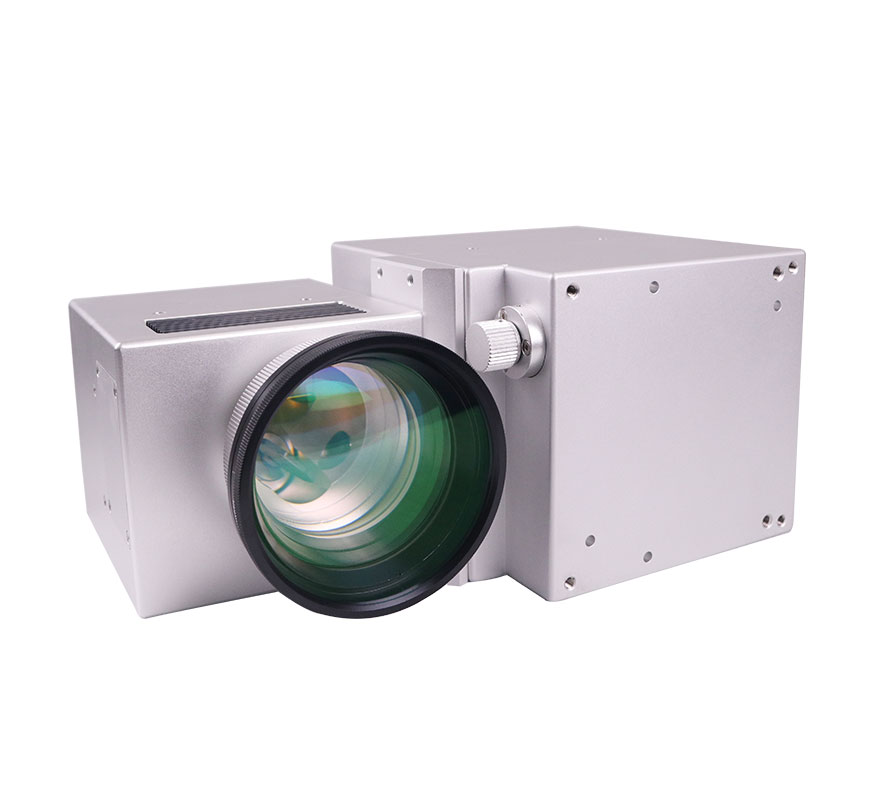

scan heads

Key Features Of High Speed 3d & 2.5d Scanning System 14mm


  • Using 14mm 2D galvanometer and VCM-Z reflection z-axis focusing system, X, Y, Z-axis dynamic response perfectly matching, realizing high-speed 3D processing


  • UV, green and infrared three bands available


  • High speed glass drilling applications with front focusing field mirror


  • Optional 14mm UltraScan and Extrascan galvanometers are available according to customer's different accuracy and speed requirements

Products
Download
  • 14mm Fiber 2.5D Dimensions
  • 2.5D System Calibration Instructions
Leave a Message
*
*
*
*
*

Specifications Of High Speed 3d & 2.5d Scanning System 14mm



ltem

Unit

Parameter


Power Supply

Input Voltage

vac

170-264

Output Voltage

vdc

±15

Current

a

10


Control Card

Input Interface


XY2-100

Output Interface


Entermet Port

Laser Type


Ultraviolet、IR、Green


Environmental
Requirement

Ambient Temperature

℃

0～+40

Storage Temperature

℃

一10～+60

Humidity


≤75%  Non-Condensing


Specifications
For
Defiection
Unit

Scan angle

°

±11.5

Repeatability

urad

5

Max.Gain Drift

ppm/K

12

Max.Offset Driff

urad/K

30

Long-Term Driff Over 8h

mrad

0.3

Maximal Processing Speed

s

650

Small Step Response

ms

≤0.18

Dynamic zoom system parameters

Small Step Response

ms

≤1.6

Specifications
For
Optics

Laser


UV Laser

YAG/Fiber

Green

Wavelenth

nm

355

1064

532

Coating


Anti-Reflection Film

Aperture Size

mm

φ14

System Input Laser Beam

mm

9

7

3.5

Specifications
For Structure

Weight

Kg

8

Dimension(L×W×H)

mm

324x140x181.5

3D system
Field Size&
Spot Diameter


Ultraviolet

Field Size

mm

100x100x40

200x200x80

300x300x150

400x400x150

500x500x150

600x600x150

The Smallest Spot diameter1/e²

mm

0.009

0.015

0.022

0.026

0.033

0.039


IR

Field Size

mm

60x60x60

100x100x90

100x100x40

200x200x80



The Smallest Spot Diameter1/e²

mm

0.021

0.027

0.025

0.0415




Green

Field Size

mm

100x100x40

200x200x80

300x300x150

400x400x150

500x500x150

600x600x150

The Smallest Spot diameter1/e²

mm

0.013

0.023

0.031

0.04

0.0496

0.059


2.5D system
Field Size&
Spot Diameter


Green 2.5D  System

Wavelength

nm

532nm

Aperture Size

mm

φ14

System Input Laser Beam

mm

φ3.5

Field Size

mm

70x70

Focus Range In Z-Direction

mm

±5mm

Distance Of F-Theta From Working Face

mm

93.03mm

The Smallest Spot diameter1/e²

mm

0.01mm

Application Industry


Glass Panel Cutting&Driling

Machining Efficiency



3mm Thick Glass,with Aperture Of 4.6mm, Cutting Time≤15s


IR 2.5D System

Wavelength

nm

1064nm

Aperture Size


φ14

System Input Laser Beam


7mm

Field Size

mm

210*210

Focus Range In Z-Direction

mm

±20mm

Distance Of F-Theta From Working Face

mm

330mm

The Smallest Spot Diameter1/e²

um

45


Galvanometer Application

Laser Marking Laser Welding Laser Drilling Laser Cutting Micromachining Medical Aesthetic Ophthalmic Imaging 3D Printing Lithium Battery
