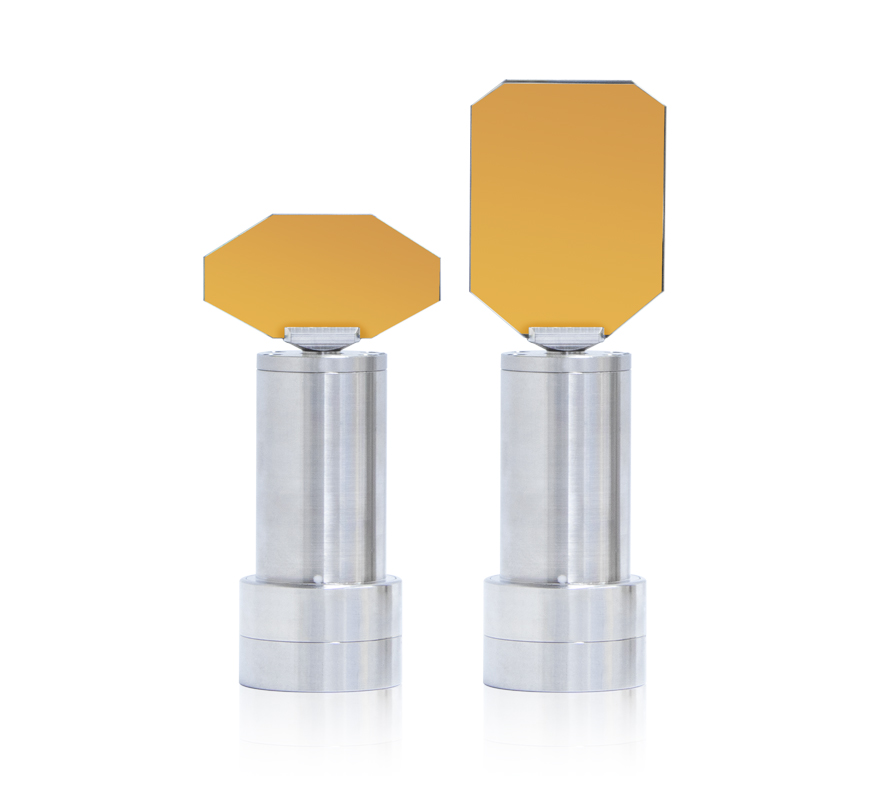

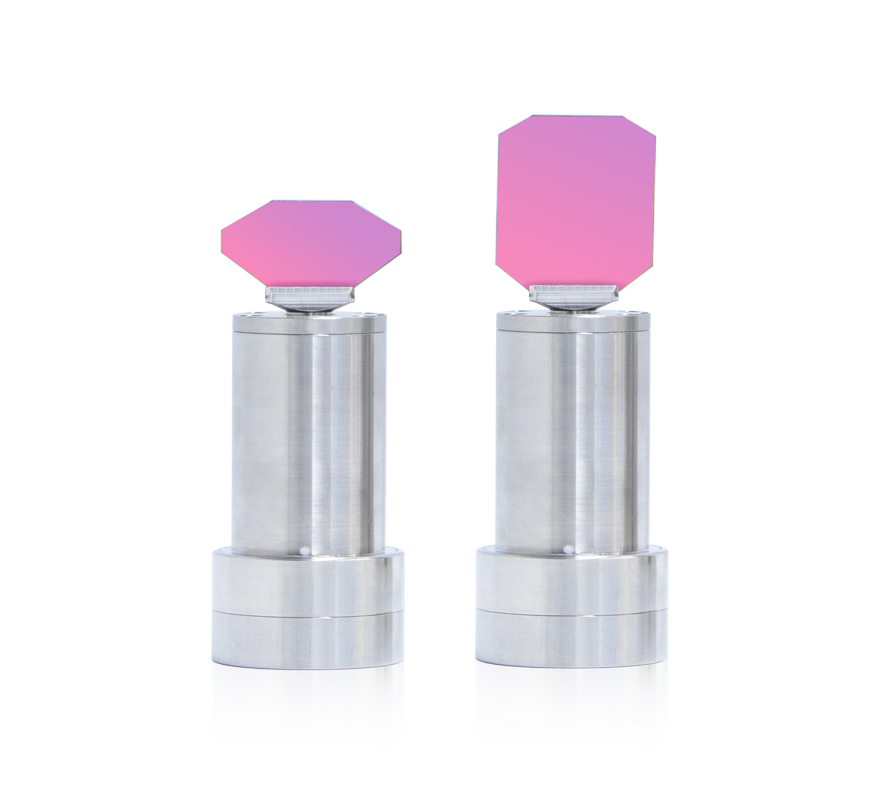

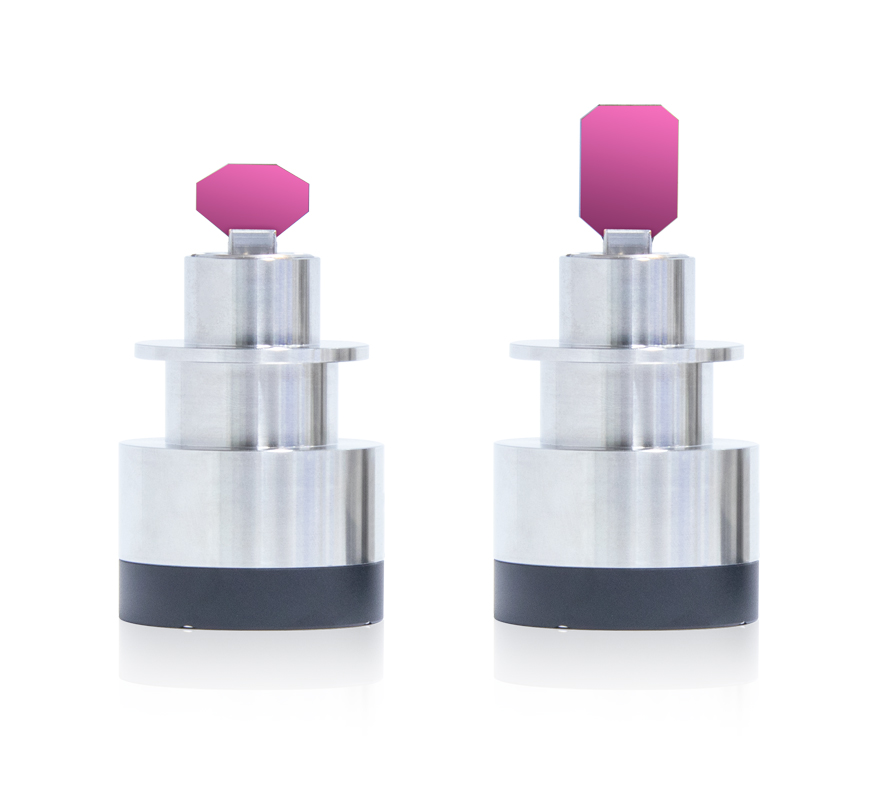

Extra-galvo Scanner

Compared with the photoelectric analog galvanometer, the installation of the grating requires a larger space, so the encoder part at the bottom of the grating digital galvanometer is higher than that of the photoelectric analog galvanometer. The grating digital galvanometer is more stable than the photoelectric analog galvanometer, and has a smaller drift subject to temperature changes. The 23bit resolution digital galvanometer achieves excellent positioning accuracy and repeated positioning accuracy, supports position monitoring and position feedback of the galvanometer, real-time detection of the status, and ensures safe and reliable operation.

GET A QUOTE
Galvanometer Scanning Mirror
Galvanometer Scanning Mirror
Xy Galvo Scanner
Xy Galvanometer
Scanning Galvanometer
Galvo Motor System
Galvo Motor

Key Features Of Extra-galvano Scanner


  • The single-axis galvanometer consists of a galvanometer part based on moving magnet technology and a high precision sensor as a feedback part.


  • Through kinematics and dynamics simulation, the mirror with certain inertia is matched for each galvanometer. Moreover, the rotor of the galvanometer has been optimized and has excellent dynamic properties and response characteristics.


  • Grating galvanometer is a kind of galvanometer with grating encoder as feedback system. It has the characteristics of high resolution, very high repeatability and very low drift, and keeps good repeatability even under the condition of ambient temperature change.


  • Galvanometer scanning mirror is available for common laser wavelengths and energy levels. Besides, all the galvanometer mirrors are optimized to take into account the inertial load, rigidity and flatness of the galvanometer mirrors.

Download
  • 10mm Extra-Galvo X Outline Dimension Drawing
  • 10mm Extra-Galvo Y Outline Dimension Drawing
  • 14mm Extra-Galvo X Outline Dimension Drawing
  • 14mm Extra-Galvo Y Outline Dimension Drawing
  • 20mm Extra-Galvo X Outline Dimension Drawing
  • 20mm Extra-Galvo Y Outline Dimension Drawing
  • 30mm Extra-Galvo X Outline Dimension Drawing
  • 30mm Extra-Galvo Y Outline Dimension Drawing
Show More
Leave a Message
*
*
*
*
*

Specifications Of Extra-galvo Scanner


Grating Galvanometer

S

M

L

Input Beam Aperture (mm)

10

14

20-30

Moment Of Inertia(g•cm2)

0.6

1.5

7.2

Force Constant(N•mm/A)

7.5

15

24

Coil Resistance(Ω)

2.7

2.6

1.58

Coil Inductance(µH)

155

275

385

Maximum Continuous Current(A)

2.5

3.5

5

Peak Current(A)

10

10

10

Rise Time(ms)

0.2

0.3

0.7

Weight(g)

220

300

400


Galvanometer Application
