Ultra-galvo Scanner

The galvanometer scanner laser using photoelectric sensor as feedback system is characterized by high repetition accuracy and linearity, and high cost performance. Mirror coating film selection is rich, UV, green light, optical fiber, CO2 and other coating options, strict lens quality testing to ensure the requirements of lens flatness and damage threshold, photoelectric mirror is widely used in galvo laser welding, flight marking, precision marking, precision cutting, and other industries.

GET A QUOTE
xy galvo scanner
xy galvo scanner
galvanometer scanner
galvano scanner
galvo scanner
galvo scanning system
scanning galvanometer

Key Features Of Ultra-galvo Scanner


  • Through kinematics and dynamics simulation, the mirror with certain inertia is matched for each galvo meter.  Moreover, the rotor of the galvanometer has been optimized and has excellent dynamic properties and response characteristics.


  • In addition, high precision miniature bearing axial preloads ensure high rigidity and low friction operation, and special attention is paid to bearing life.


  • Photoelectric galvanometer is a kind of galvo meter which uses photoelectric sensor as feedback system. It is characterized by high repetition accuracy and linearity, and high cost performance.


  • Galvanometer scanning mirror is available for common laser wavelengths and energy levels. Moreover, all the mirrors are optimized to take into account the inertial load, rigidity and flatness of the lenses.


  • Photoelectric galvo meter is widely used in flight marking, precision marking, precision cutting, precision welding, and other industries.


Download

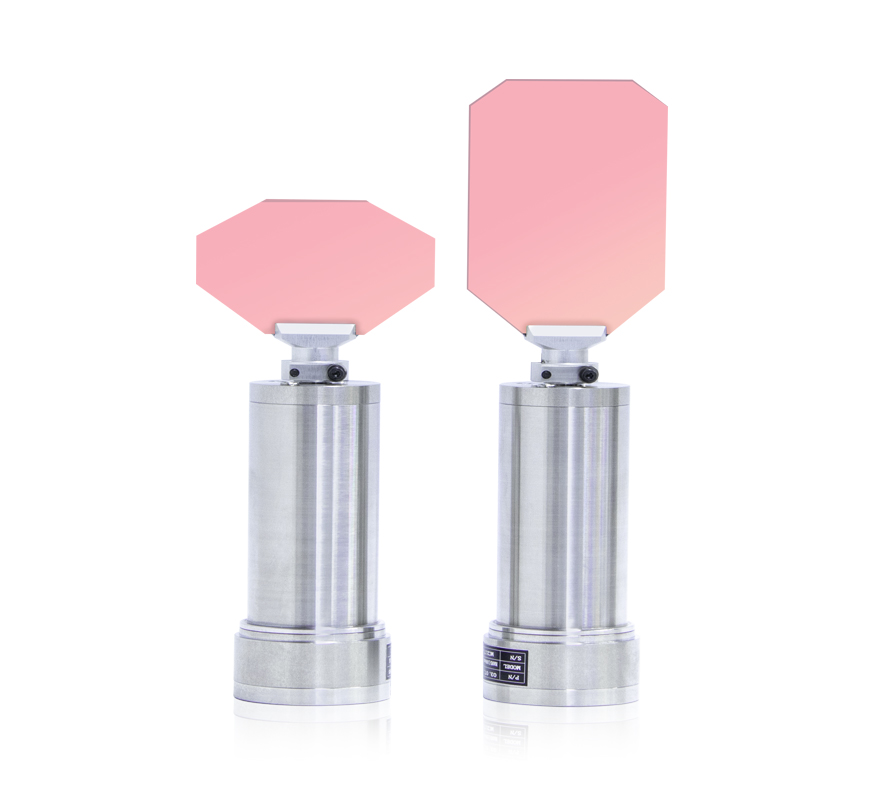

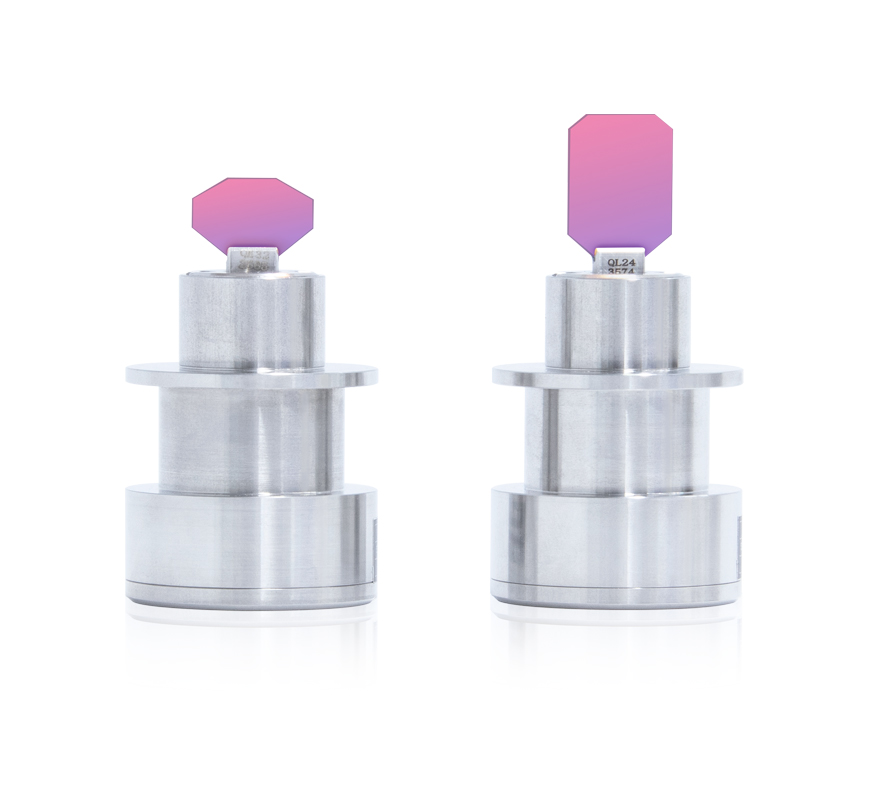

  • 10mm Ultra-Galvo X Outline Dimension Drawing
  • 10mm Ultra-Galvo Y Outline Dimension Drawing

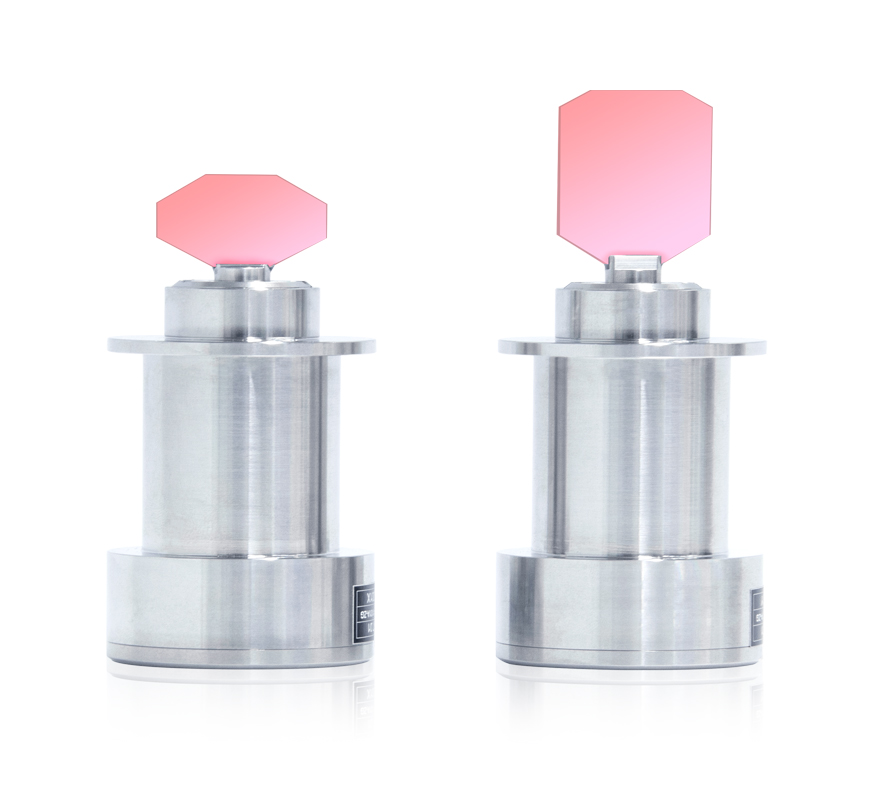

  • 14mm Ultra-Galvo X Outline Dimension Drawing
  • 14mm Ultra-Galvo Y Outline Dimension Drawing

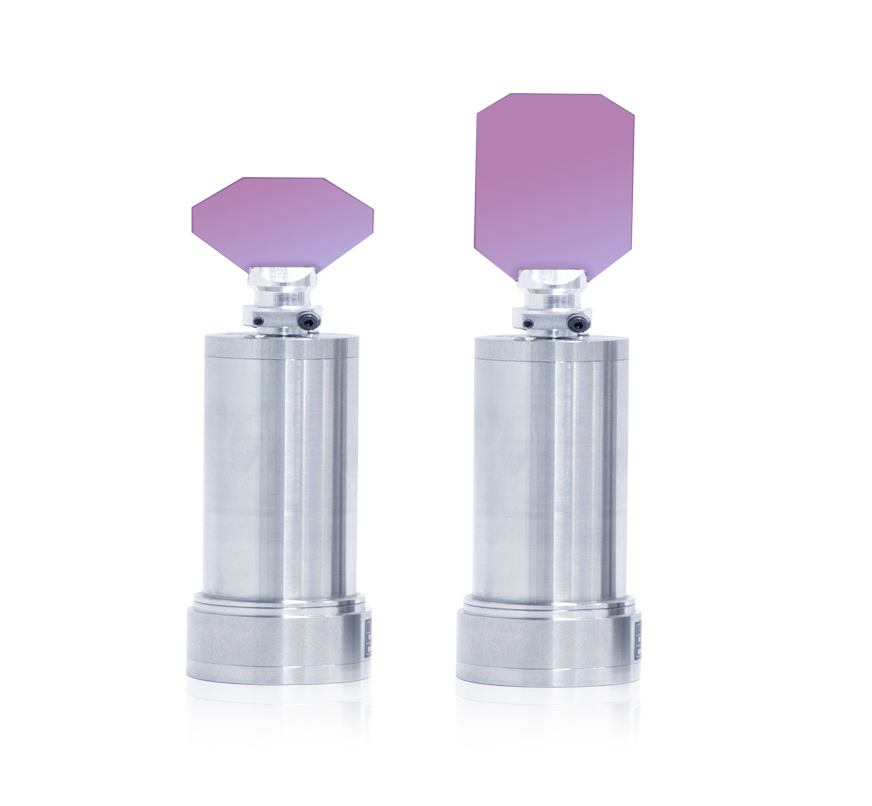

  • 20mm Ultra-Galvo X Outline Dimension Drawing
  • 20mm Ultra-Galvo Y Outline Dimension Drawing
  • 30mm Ultra-Galvo X Outline Dimension Drawing
  • 30mm Ultra-Galvo Y Outline Dimension Drawing
  • 50mm Ultra-Galvo X Outline Dimension Drawing
  • 50mm Ultra-Galvo Y Outline Dimension Drawing
  • ST200L Outline Dimension Drawing
  • ST210L Outline Dimension Drawing
  • ST220 Outline Dimension Drawing
  • ST240 Ultra-Galvo Outline Dimension Drawing
  • ST250 Ultra-Galvo Outline Dimension Drawing
Show More
Leave a Message
*
*
*
*
*

Specifications Of Ultra-galvo Scanner


Photoelectric Galvanometer

XXXS

XXS

XS

S

M

L

XL

Input Beam Aperture (mm)

<7

7

8.5

10

14

20-30

50-80

Moment Of Inertia(g•cm2)

0.013

0.018

0.174

0.34

1.2

5.1

14.3

Force Constant(N•mm/A)

1.2

2.7

5.3

7.5

15

24

35

Coil Resistance(Ω)

2.1

3.6

2.1

2.7

2.6

1.58

0.9

Coil Inductance(µH)

35

70

63.5

165

275

300

343

Maximum Continuous Current(A)

2.3

2.3

2.3

2.5

3.5

5

7

Peak Current(A)

6

8

10

10

10

10

10

Rise Time(ms)

0.13

0.10

0.15

0.18

0.3

0.7

1.5

Weight(g)

13

18

50

220

300

400

460


Galvanometer Application
