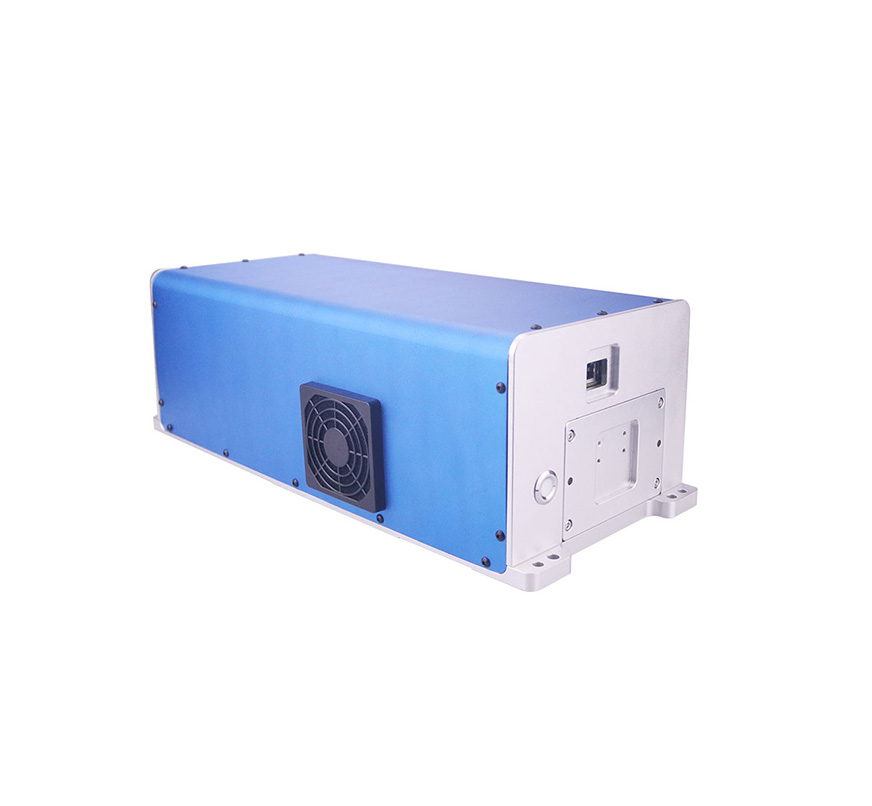

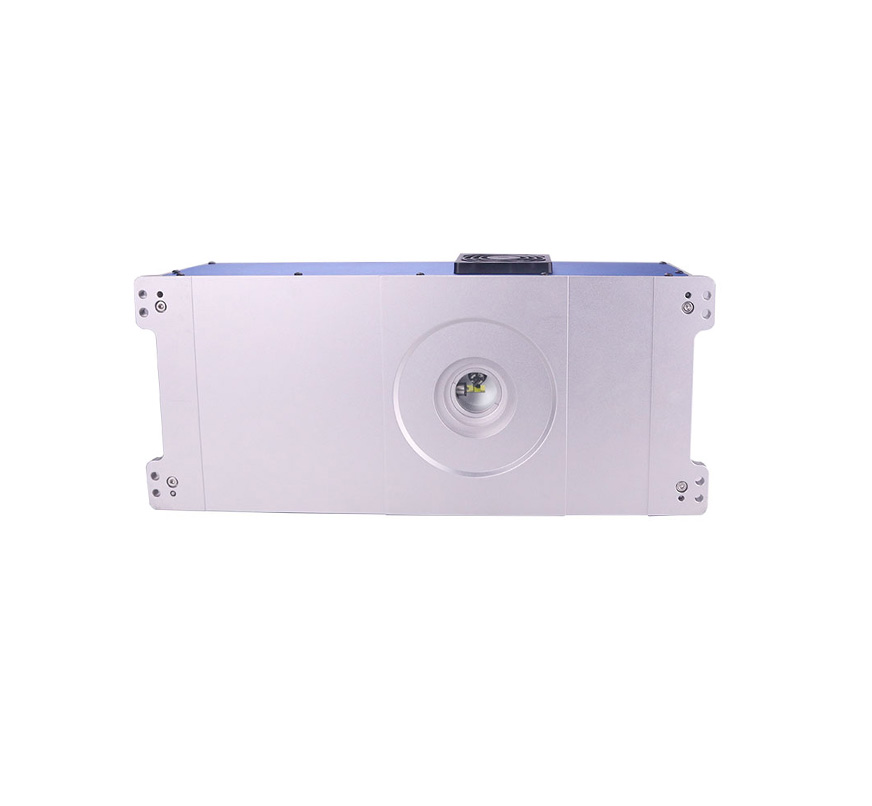

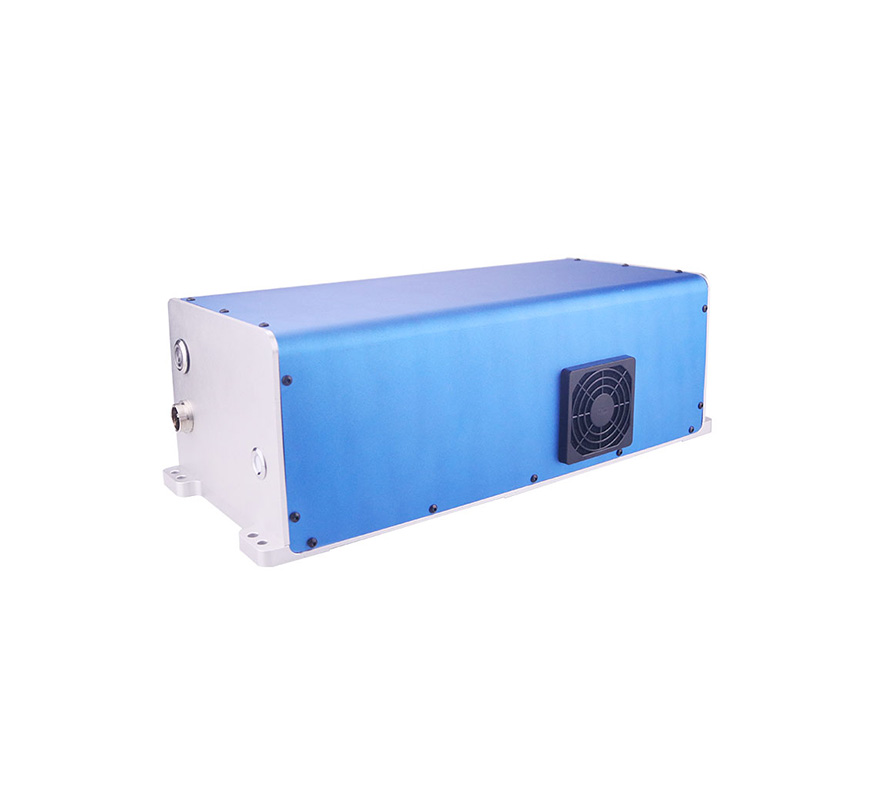

Laser PD System

Projection detection systems accurately project CAD-based laser images onto any surface, providing an intuitive virtual sequencing solution for operators to outline parts, items or areas of interest. Positioning accuracy up to 0.25 mm@4.6 m (0.010 in @15 ft), mainly used in logistics ranging, positioning, speed measurement, detection and other industries.

GET A QUOTE

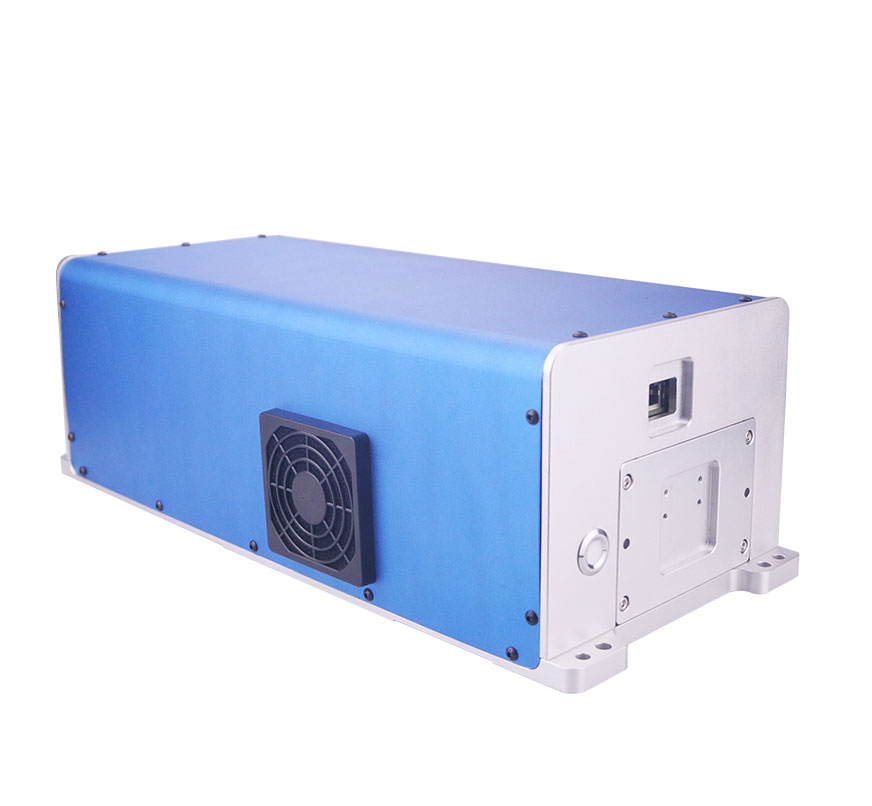

Laser Scanning Solutions
Laser Scanning Solutions

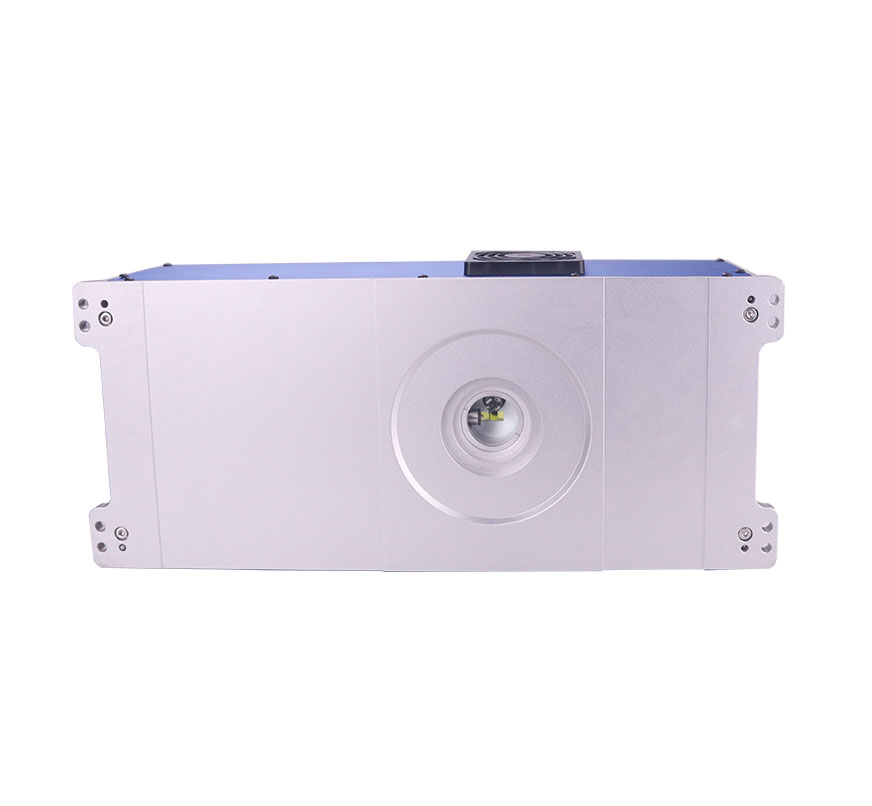

3d Scanning Solutions

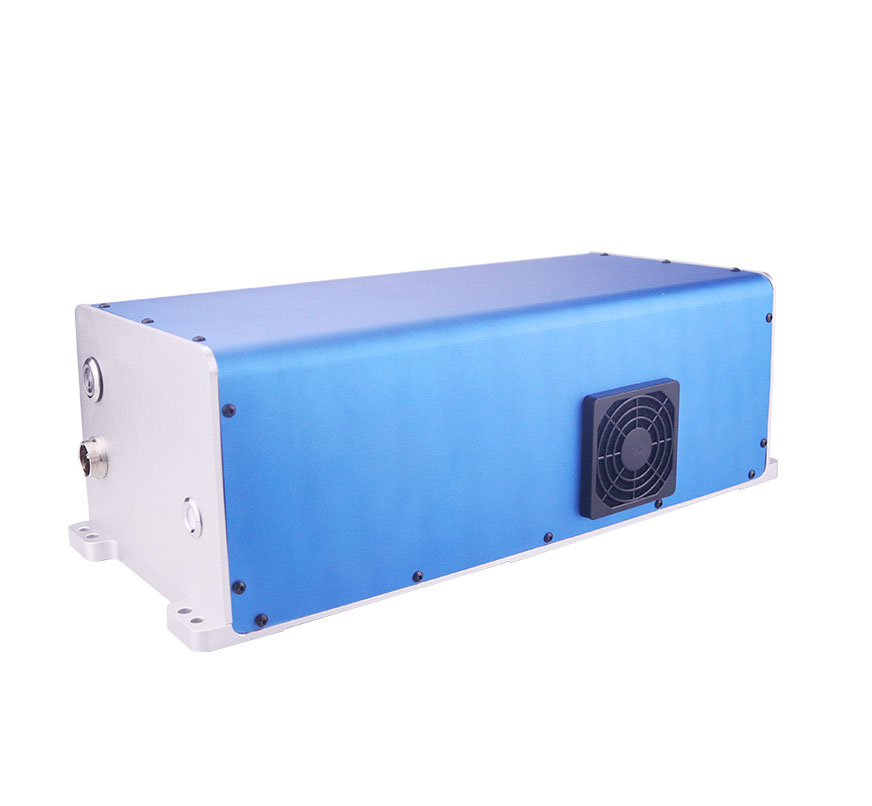

3d Laser Scanning Technology

Key Features Of Laser PD System


  • Product advantage


• Reduces layout, setup, and assembly time to significantly increase production


• Promote standardized workflow and minimize assembly errors



• Reduce the use of physical templates, thereby saving time and cost


  • Application scenarios


• Logistics industry ranging, positioning, speed measurement, detection, etc



• Composite layer processing



• Mobile home formwork prefabricated



• Positioning of laser welding system and auxiliary drilling in machining field



• Assembly and positioning of large equipment or vehicles



• Paint and applique templates for wall or object surfaces

Download
  • Laser Pd System Dimensions
Leave a Message
*
*
*
*
*

Specifications Of Laser PD System


Laser Spot(mm)

≤2.5

Standard Wavelength (nm)

532,(Green)

Positioning Acceracy(mm/m)

±0.1

Repeatability(mm/m)

±0.025

Projection Angle(°)

80 X 80

Connection

Ethernet By Interface

Power Requirements

±15VDC@5Amax

Laser Power(mw)

100

(°C)Operation Temperature

25±10


Galvanometer Application

Please Contact Us!
